WANTED Female seat belt buckle and 4bbl kickdown linkage set up

[Mopar&vettedude]

As the title States I am looking for the belt buckle female end for my cordoba. The driver is starting to crack and fall apart, also I am looking for the full kickdown linkage set up for a 4bbl. Let me know. Thanks CW.



[BudW]

I don’t have either (for sale), but I thought you might clarify your request.

4 bbl for 318/360, for /6 or big block?
904/998/999 or 727 (they are slightly different).

Note: a lot of people are selling small block setups that is not the correct parts for a 4-bbl – so if in doubt, post pictures.
If not able to find a 4-bbl setup, Lokar makes a great cable setup and is worth considering.
BudW



[Mopar&vettedude]

It's for a 318 with the 904 transmission.



[marty mopar]

belt: color, front seat?



[Mopar&vettedude]

Dark blue seat belts or if you have black that's fine as well and they are for the front buckets



[slant6billy]

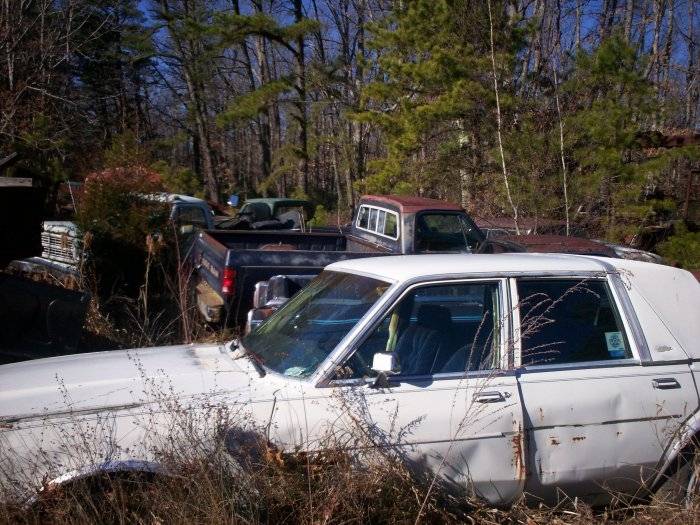

Will a seatbelt for an Imperial work?

I know it is neither blue or black? I can grab it on Presidents day.

Or will this work with the dark blue interior? I think it is the 60/40 plush seat. Are the belts different?

She is in the same yard. Can't remember, but I think they are all 2 BBL. Again, Gator and I will be trudging the junkyard on the 20th. Is it a hex or torx bolt? Either way- I'll have them both, but I'll pre-load the electric impact gun in "ready mode". I have to stop bringing 180 pounds of tools into the yard, so I go with exactly what I need to pull with.



[BudW]

I would think Cordoba, Mirada and Imperial would be the same. Might be the same as any FMJ 2 door . . . maybe.

Will take a 13/16” socket (same size as spark plug) at 2 or 3 locations. Flat screwdriver for top cover and maybe a Phillips for seat attachment (which if seat attachments are good, grab).

4-door front outer belt will be different. Inner's might be the same.



[slant6billy]

I would think Cordoba, Mirada and Imperial would be the same. Might be the same as any FMJ 2 door . . . maybe.

Will take a 13/16” socket (same size as spark plug) at 2 or 3 locations. Flat screwdriver for top cover and maybe a Phillips for seat attachment (which if seat attachments are good, grab).

4-door front outer belt will be different. Inner's might be the same.

thanks Bud

I'm set for junkn



[Mopar&vettedude]

Sorry about posting late, but yes the seat belts out of the imp work as well.



[slant6billy]

Sorry about posting late, but yes the seat belts out of the imp work as well.

headed there next Monday. Private message me your phone/ text number and I'll text you a price before I pullit. If you dig the price I grab it and we can go from there. Should be really cheap.



[BudW]

The socket size is 13/16” (again), but the first few turns are rather tight (Loctite?).
I’d recommend taking a long ½” drive socket wrench and maybe a 3/8” socket wrench and adaptor to finish ‘em off.



[slant6billy]

The socket size is 13/16” (again), but the first few turns are rather tight (Loctite?).
I’d recommend taking a long ½” drive socket wrench and maybe a 3/8” socket wrench and adaptor to finish ‘em off.

thanks man. Yeah, I'm still not 100% up on strength, so just taking tools (the exact tools) I need and not the whole bag.



[slant6billy]

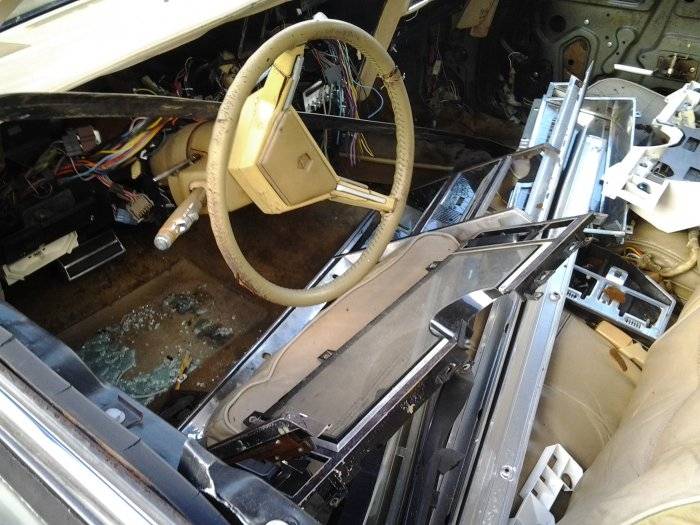

And just found that both cars have the dreaded broken sleeve (the twisted plastic tunnel the belt is inside of) Where does the electric connector unplug from? under the seat?



[Mopar&vettedude]

I think it runs under the carpet.



[marty mopar]

1983 J Body

1 BELT, Front Seat Lap Buckle Inner Label No. 4054666 N N N N0
F758 AA3 1 Silver N N N YF758AA3
F758 SC7 1 Blue, Dark N N N YF758SC7
F758 TM6 1 Red N N N YF758TM6
F758 BL3 1 Tan N N N YF758BL3
Label No. 4316753, Left N N N N0
F709 BA3 1 Silver N N N YF709BA3
F709 BC7 1 Blue, Dark N N N YF709BC7
F709 BM6 1 Red N N N YF709BM6
F709 BL3 1 Tan N N N YF709BL3
2 BELT, Front Seat Center N N N N0
Buckle Half, Label No. 4250464 N N N N0
F658 BA3 1 Silver N N N YF658BA3
F658 BC7 1 Blue, Dark N N N YF658BC7
F658 BM6 1 Red N N N YF658BM6
F658 BL3 1 Tan N N N YF658BL3
Tip Half, Label No. 4290459 N N N N0
F653 BA3 1 Silver N N N YF653BA3
F653 BC7 1 Blue, Dark N N N YF653BC7
F653 BM6 1 Red N N N YF653BM6
F653 BL3 1 Tan N N N YF653BL3
3 F814 JX9 2 COVER, Front Seat Lap Belt Tunnel Anchor Bolt, Black N N N
YF814JX9
4 6030 458 AR BOLT N N N Y6030458
5 AR SPACER (not serviced) N N N N0
6 4172 807 1 BRACKET, Unibelt Solenoid Mounting N NY N Y4172807
7 4172 808 1 SOLENOID, Unibelt N NY N Y4172808



I have this one NOS:

F709BL3 LF inboard tan or cashmere it has Label No. 4316753 on it



[slant6billy]

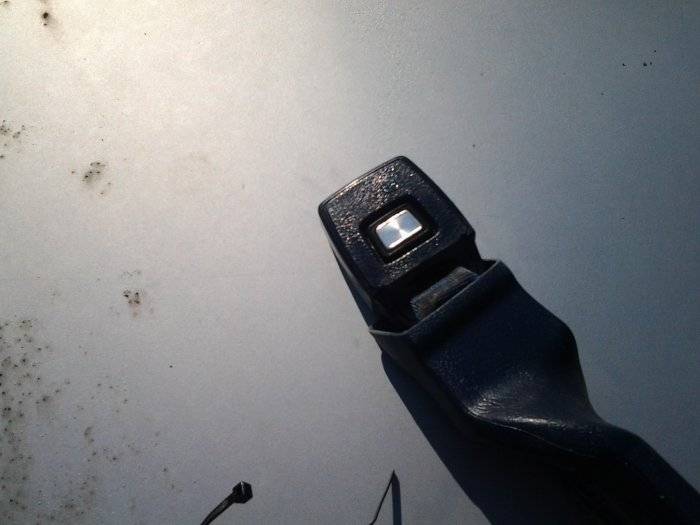

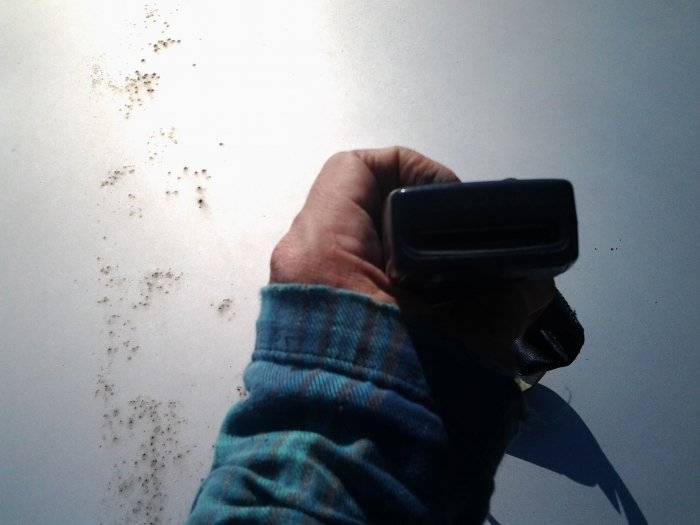

here is the score.



[Mopar&vettedude]

Nice. They're like new



[kkritsilas]

1983 J Body

1 BELT, Front Seat Lap Buckle Inner Label No. 4054666 N N N N0
F758 AA3 1 Silver N N N YF758AA3
F758 SC7 1 Blue, Dark N N N YF758SC7
F758 TM6 1 Red N N N YF758TM6
F758 BL3 1 Tan N N N YF758BL3
Label No. 4316753, Left N N N N0
F709 BA3 1 Silver N N N YF709BA3
F709 BC7 1 Blue, Dark N N N YF709BC7
F709 BM6 1 Red N N N YF709BM6
F709 BL3 1 Tan N N N YF709BL3
2 BELT, Front Seat Center N N N N0
Buckle Half, Label No. 4250464 N N N N0
F658 BA3 1 Silver N N N YF658BA3
F658 BC7 1 Blue, Dark N N N YF658BC7
F658 BM6 1 Red N N N YF658BM6
F658 BL3 1 Tan N N N YF658BL3
Tip Half, Label No. 4290459 N N N N0
F653 BA3 1 Silver N N N YF653BA3
F653 BC7 1 Blue, Dark N N N YF653BC7
F653 BM6 1 Red N N N YF653BM6
F653 BL3 1 Tan N N N YF653BL3
3 F814 JX9 2 COVER, Front Seat Lap Belt Tunnel Anchor Bolt, Black N N N
YF814JX9
4 6030 458 AR BOLT N N N Y6030458
5 AR SPACER (not serviced) N N N N0
6 4172 807 1 BRACKET, Unibelt Solenoid Mounting N NY N Y4172807
7 4172 808 1 SOLENOID, Unibelt N NY N Y4172808



I have this one NOS:

F709BL3 LF inboard tan or cashmere it has Label No. 4316753 on it

Are any tan covers available for a 1980 Chrysler Cordoba? My driver's side female seat belt cover is disintegrating, probably due to UV.



[slant6billy]

Are any tan covers available for a 1980 Chrysler Cordoba? My driver's side female seat belt cover is disintegrating, probably due to UV.

I can check the Imp?



[kkritsilas]

slant6billy, that would be great, but the Imp's cover may have the same issue. The one in my Cordoba is dried out and stiff, so if you put just a slight pressure on it, it crumbles. It is so stiff that it has worn a hole on the driver's seat bolster, towards the middle of the car. Strangely enough, no issue on the passenger side. Seat is a 60/40 split bench (power, if it makes a difference). If I can't get a reasonably priced replacement, I may just have to remove the plastic cover, and leave the seatbelt without a cover, just to avoid any more seat bolster damage.
