Need help understanding wire diagrams

M Body General Discussion

  1. Strobo

    Strobo Member

    Messages:
    20
    Likes Received:
    1
    Joined:
    Feb 6, 2021
    Location:
    Florida

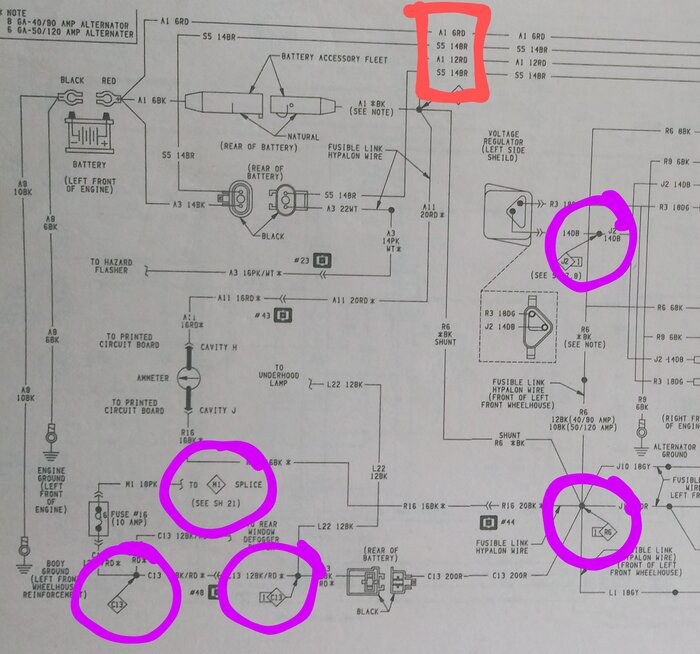

    Need help understanding wire diagram out I the Haynes book.
    The only Legend they have in the book is for wire color.
    My first question has to with whats highlighted with the red box in the pic. Wires are listed as;
    A1 GRD
    S5 14BR
    A1 12RD
    S5 14BR
    What does the A1,S5 mean?
    What does the 14,12 mean?

    My second question has to with the purple highlights.
    What does the Dimonds mean, also numbers inside? Some diamonds have a square connected with numbers/letters inside, what do they mean?
    Thanks for all your help


  2. Mr C

    Mr C Well-Known Member

    Messages:
    347
    Likes Received:
    110
    Joined:
    Apr 22, 2014
    A1 GRD...A1= Battery Positive cicruit, it's a 6 not a G gauge of wire, RD=Red
    S5 14BR...Same idea, 14 guage wire, BR=Brown
    A1 12RD
    S5 14BR
    What does the A1,S5 mean? Circuit identification codes
    What does the 14,12 mean? Guage of wire
    Diamonds identify splices in harness...all of this information is in the wire diagram legend in the manual.

    Strobo likes this.
  3. Strobo

    Strobo Member

    Messages:
    20
    Likes Received:
    1
    Joined:
    Feb 6, 2021
    Location:
    Florida
    Thanks. I looked hard for the legend and all I found was what the color code was. I sure appreciate it...really

  4. Mikes5thAve

    Mikes5thAve Well-Known Member

    Messages:
    417
    Likes Received:
    133
    Joined:
    Mar 3, 2020
    Location:
    Canada
    The s5 type numbers and diamonds also help you follow the wires thru the connectors or different diagrams.

    Strobo likes this.
  5. Aspen500

    Aspen500 Well-Known Member

    Messages:
    5,354
    Likes Received:
    1662
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    A Haynes manual may not have all the information the actual factory service manual has, such as the legend for wiring schematics.

    Strobo likes this.
  6. BudW

    BudW Moderator Staff Member

    Messages:
    4,434
    Likes Received:
    1203
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Haynes (and the thinner Chiltons) manuals are almost not worth the paper they are printed on. In this case, Haynes copied select pages from the FSM (Factory Service Manual) without the legend attached.
    It is like looking at a copy of a large paper street map that someone cut out a very small part/segment to give to you to use.

    I looked and found nothing as to what year Diplomat you have (you might want to add this to your signature page), so I took a stab (on the year) and looked on eBay for a '84 FSM and found one without looking too hard: 1984 Dodge Chrysler Plymouth Technical Service Manual RWD Car Vol 1 & 2 | eBay .
    Here is one for a '88 : 1988 88 MoPar Dodge Plymouth RWD Service Manual 5th Avenue Diplomat Gran Fury M6 | eBay .

    If you find one but not sure if the correct one, or not, post a link here and we can answer for you. Either way, a $20ish FSM is far superior than the other, before mentioned, manual want-a-be's are.

    On a different note, what are you trying to figure out, exactly?
    BudW

    Strobo likes this.
  7. Aspen500

    Aspen500 Well-Known Member

    Messages:
    5,354
    Likes Received:
    1662
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    Think of Haynes to a factory service manual like Readers' Digest is to a book (condensed version).

    Strobo likes this.
  8. Ele115

    Ele115 Well-Known Member

    Messages:
    345
    Likes Received:
    102
    Joined:
    Apr 24, 2019
    Location:
    Tampa FL
    What Bud said is true. The Haynes offers just enough info and pictures to render a shade tree mechanic lethal. Used FSM are easily found on FeeBay for under $20 and well worth it after their first use

    Strobo likes this.
  9. DCAspen

    DCAspen Well-Known Member

    Messages:
    1,146
    Likes Received:
    232
    Joined:
    Sep 27, 2011
    Location:
    ct.
    A must have when working on these cars.

    Strobo likes this.
  10. Mikes5thAve

    Mikes5thAve Well-Known Member

    Messages:
    417
    Likes Received:
    133
    Joined:
    Mar 3, 2020
    Location:
    Canada
    Especially when you can get them so cheap.

    I do have to say the Haynes manual for these cars is the only somewhat decent Haynes manual I've had so far. Between largely based off an 80s diplomat and chrysler never changing much from the 70s I used mine quite a bit before I got my hands on factory manuals. Pre ebay days. There are some procedures in it that are quicker and straight to the point compared to the factory one. I have one for another car that is so useless it would be like using the m body book to fix an lhs.

    Strobo likes this.
  11. LSM360

    LSM360 Well-Known Member

    Messages:
    348
    Likes Received:
    76
    Joined:
    Nov 28, 2011
    Location:
    Melbourne, Florida
    Strobo, you have an '88?

    Strobo likes this.
  12. M_Body_Coupe

    M_Body_Coupe Well-Known Member

    Messages:
    294
    Likes Received:
    98
    Joined:
    Aug 19, 2013
    Location:
    Windsor, ON, Canada
    Maybe this will help a bit?

    FSM scans, 1980 model year, so some things will be different, but in general the diagram legend still applies.

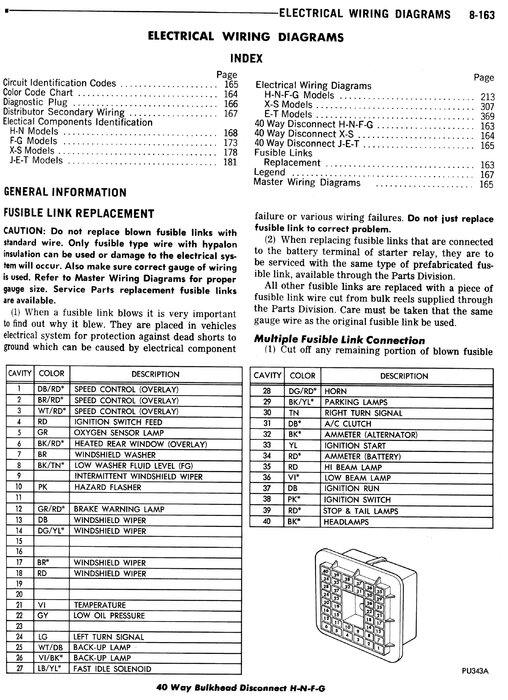

    FSM - 1980 - Master Wiring Diagrams - P1.jpg

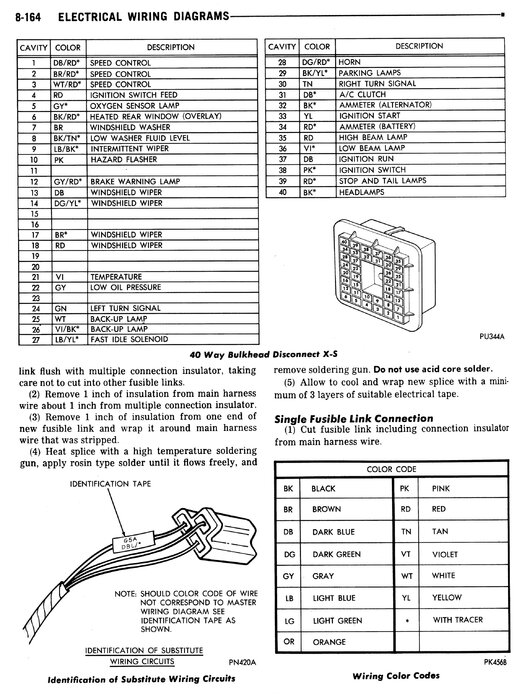

    FSM - 1980 - Master Wiring Diagrams - P2.jpg

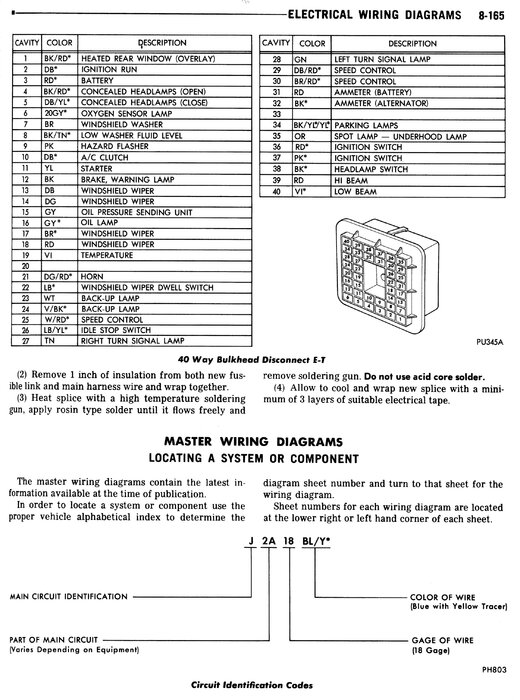

    FSM - 1980 - Master Wiring Diagrams - P3.jpg

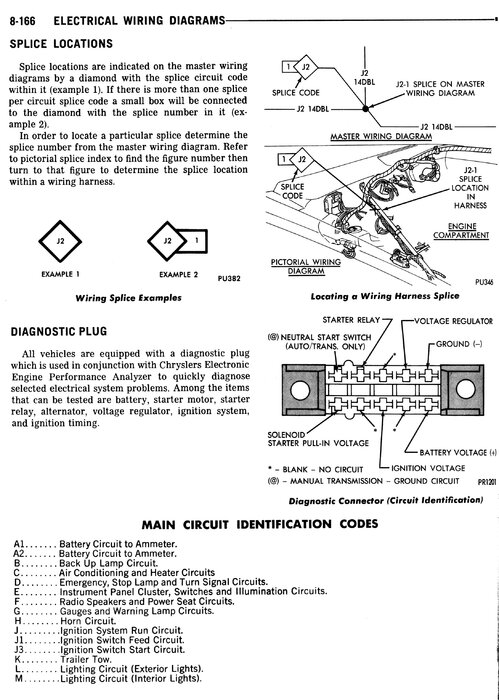

    FSM - 1980 - Master Wiring Diagrams - P4.jpg

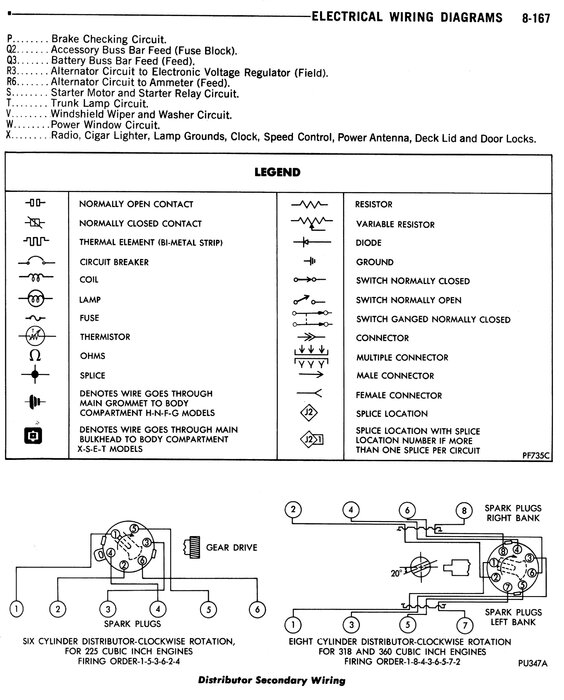

    FSM - 1980 - Master Wiring Diagrams - P5.jpg

    Strobo likes this.
  13. Strobo

    Strobo Member

    Messages:
    20
    Likes Received:
    1
    Joined:
    Feb 6, 2021
    Location:
    Florida
    Hi, yes she is an 88. I'm looking at all this info you posted. This is very awsome. Haven't had a chance to go through all of it. I luv you guys. Everyone has been so great and informative. I wish I could say more right now but have to get back to cooking dinner.

  14. Strobo

    Strobo Member

    Messages:
    20
    Likes Received:
    1
    Joined:
    Feb 6, 2021
    Location:
    Florida
    Thank you. The legend is exactly what I was looking for. Thank you so much.
    On my 88 DDiplomat (that I was given! :) )
    I was replacing water pump, valve cover and intake manifold gaskets. Oh forgot, lean burn delete so I was slowly removing the wires not needed any more. Im painting engine bay also. So right this is what I'm focusing on.
    Again thanks so much

  15. Strobo

    Strobo Member

    Messages:
    20
    Likes Received:
    1
    Joined:
    Feb 6, 2021
    Location:
    Florida
    Yeap.
    Thanks for your help

  16. M_Body_Coupe

    M_Body_Coupe Well-Known Member

    Messages:
    294
    Likes Received:
    98
    Joined:
    Aug 19, 2013
    Location:
    Windsor, ON, Canada
    If you want the full-size (much higher resolution) images let me know and I can email those to you. We are limitted in the size of the attachments here on the site.
