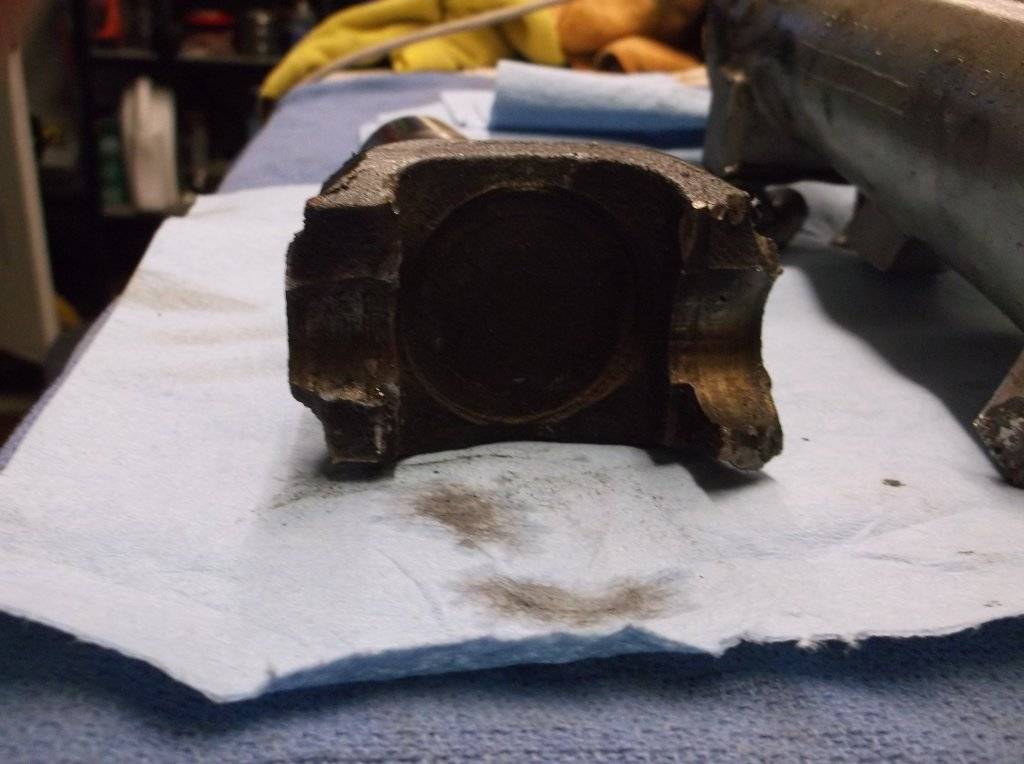

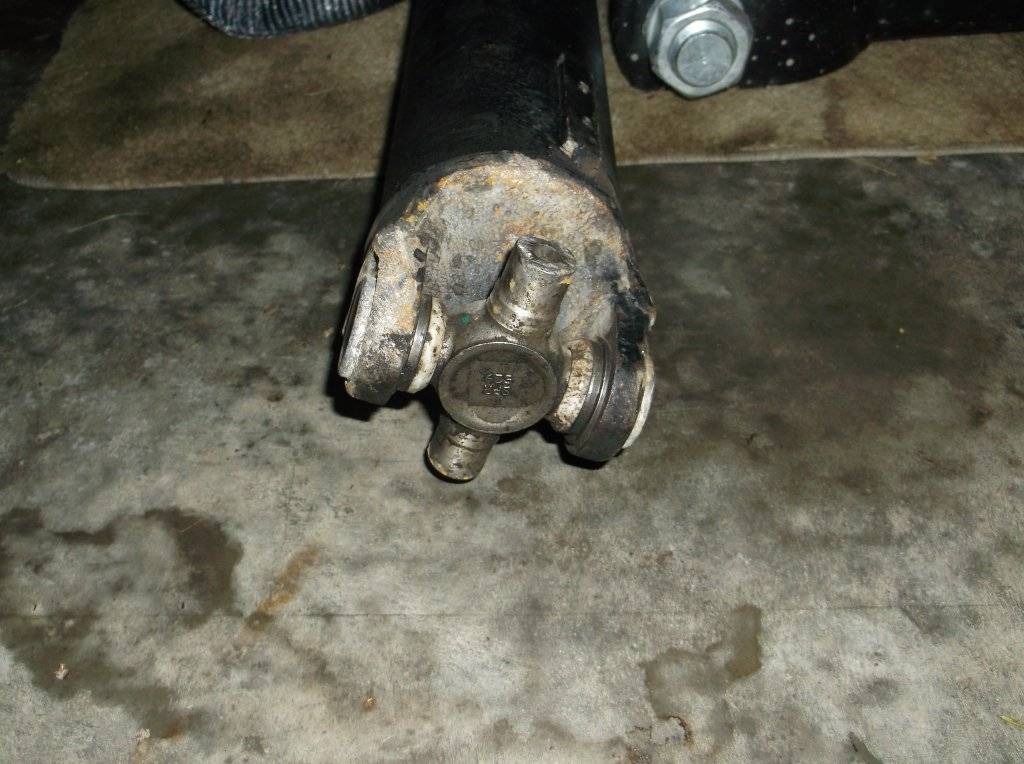

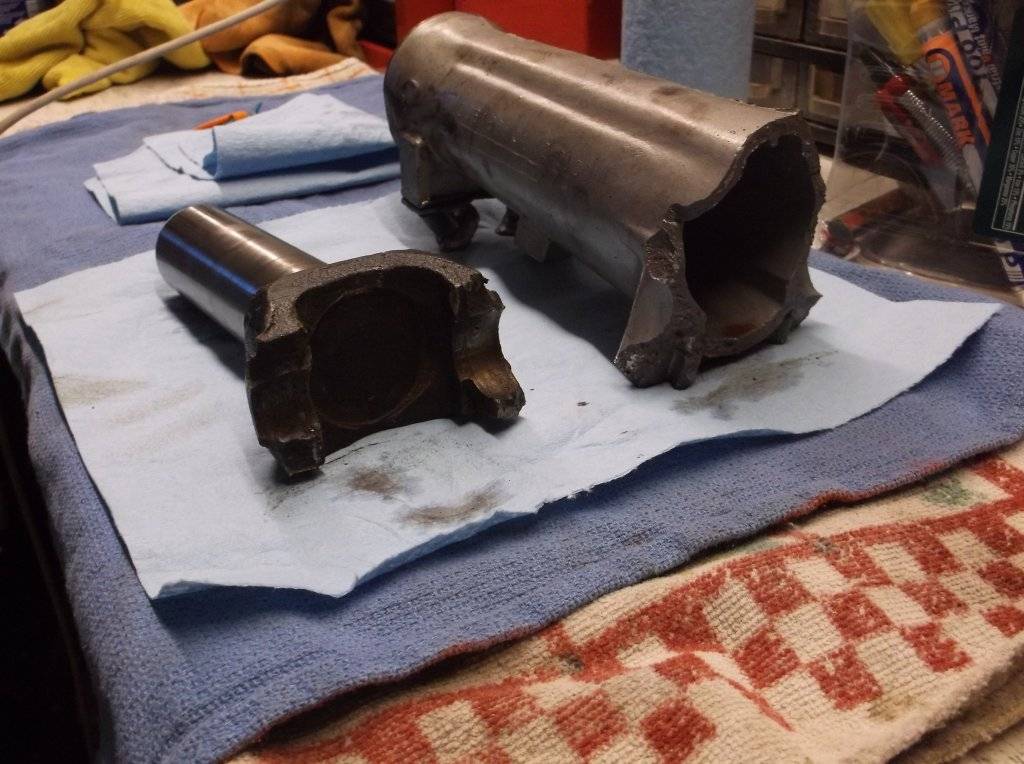

    Car was running great, new bests for the car went 12.39 12.43 and then 12.392 on a 12.40 dial in for round one exit. and boy the car let me know it wasn't happy. lol obviously car went through traps and heard a bang followed by rattling under the car...this aint good. car shut off and made the turn off the track, the only good thing is they were only down for 10 minutes for the clean up. We are in belief that the trans yoke let go, which caused all the damage. but if any one has ideas please chime in. ill know more when I get the car up in the air later this week. The u joint was a solid spicer that was put in last year. Some pictures of carnage.




  2. Captain Caravelle

    Captain Caravelle Moderator--Mopar Maniac

    Messages:
    10,789
    Likes Received:
    1121
    Joined:
    Jan 29, 2012
    Location:
    Hogtown, Ontario
    Ouch!

  3. MiradaMegacab

    MiradaMegacab Well-Known Member

    Messages:
    1,563
    Likes Received:
    393
    Joined:
    Feb 27, 2011
    Location:
    Long Island NY
    JB Weld!

    Justwondering likes this.
  4. Justwondering

    Justwondering Well-Known Member

    Messages:
    2,761
    Likes Received:
    623
    Joined:
    Aug 7, 2015
    Location:
    North Texas
    Jbweld? Are you sure you can't fix it cheaper with gorilla tape? Then you'd have money in the budget to get a fresh can of rustoleum to pretty it up.

  5. BudW

    BudW Moderator Staff Member

    Messages:
    3,797
    Likes Received:
    998
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    My Pa always said you are on the right path, when you keep breaking different things (as each past break gets upgraded). He went on to say those people who don’t break parts are not pushing their cars.

    One thing I noticed is there is not much (or any) grease on the U-joint needle bearing surface. I suspect the lack of grease for U-joint could be a cause of failure.

    The old joint caps are missing. If U-joint got installed without the retaining clips, one (of the caps) could have worked loose and out, once an imbalance occurred under WOT the yoke gave out.

    I can’t tell by the photos if the yoke is cast or forged from where the loops broke at. If a "cast part" breakage would show a coarse casting (so to speak) at the breakage.
    A forged part generally show (if not beat to death) would stretch before breaking. One corner shows to be beaten to death, so that corner can’t be used to tell.

    The extension housing has a couple of shiny areas at the breakage – which might mean it has been cracked for a while, possibly. Any imbalance at WOT will beak those extension housings without thinking twice about it.

    If this is a 727 transmission, Dodge made a heavy duty version tail housing that helps these problems. The snap ring cover is on side of housing instead of under the transmission mount (the way to tell if you have a HD housing).

    Need better pictures with better lighting, to tell you anything more.

    wvdodgemirada and Justwondering like this.
  6. MiradaMegacab

    MiradaMegacab Well-Known Member

    Messages:
    1,563
    Likes Received:
    393
    Joined:
    Feb 27, 2011
    Location:
    Long Island NY
    I use duct tape, the GF always has a roll handy.....lol


  7. MiradaMegacab

    MiradaMegacab Well-Known Member

    Messages:
    1,563
    Likes Received:
    393
    Joined:
    Feb 27, 2011
    Location:
    Long Island NY

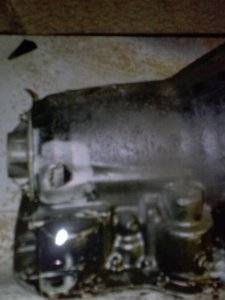

    I windowed a 727 case, low/reverse linkage ejected thru the case...


  8. wvdodgemirada

    wvdodgemirada Well-Known Member

    Messages:
    95
    Likes Received:
    11
    Joined:
    Aug 12, 2013
    Location:
    WV
    Few things I should've added, it is a 904 trans.
    we had a similar thought on it possibly already being cracked. Also the retaining clips were used on the install of u-joint. As far as yoke goes it was the original to the car, so id assume it was cast? Be more than happy to supply better pictures if you want, just got car up in air today, just let me know what you wanna see. Cause I could use a hand debunking what happened, another idea we are tossing around is the bearing let go which allowed the yoke to move more?

  9. BudW

    BudW Moderator Staff Member

    Messages:
    3,797
    Likes Received:
    998
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    The transmission output shaft bearing is a tough part to damage or fail - so I doubt that is it. On the other hand, if the output housing has been cracked for a while, it could have allowed a lot more movement that might have contributed to this issue.

    I have seen yokes be both forged and cast. I think the older ones were all forged and fairly sure that pretty much all of the newer ones are cast - but I’m not going to take that thought to the Vegas. I do know the 727 yokes are thicker/stronger than 904 ones are.

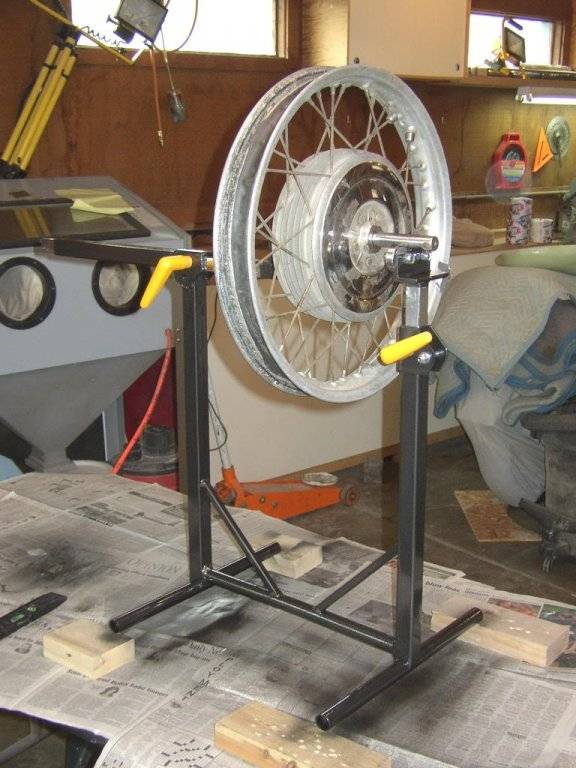

    Before going back together, make sure the output shaft is not bent. It may have to be removed from transmission and placed on an bench much like what they use to balance things (see picture).


  10. wvdodgemirada

    wvdodgemirada Well-Known Member

    Messages:
    95
    Likes Received:
    11
    Joined:
    Aug 12, 2013
    Location:
    WV
    Finally got trans back in the car. Needed new output shaft, and list of other parts. Wasn't to bad though.

  11. AJ/FormS

    AJ/FormS Well-Known Member

    Messages:
    1,021
    Likes Received:
    217
    Joined:
    Apr 26, 2016
    Location:
    On the Circle of the earth, Southern Man,Canada
    What was wrong with the shaft? Pic?

  12. wvdodgemirada

    wvdodgemirada Well-Known Member

    Messages:
    95
    Likes Received:
    11
    Joined:
    Aug 12, 2013
    Location:
    WV
    As BudW suggested, I checked the output shaft and it was bent.

  13. BudW

    BudW Moderator Staff Member

    Messages:
    3,797
    Likes Received:
    998
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Those shafts are not easy to bend - but i've seen a few bent ones - and they cause a lot of problems until narrowed down as to what the cause is.

  14. AJ/FormS

    AJ/FormS Well-Known Member

    Messages:
    1,021
    Likes Received:
    217
    Joined:
    Apr 26, 2016
    Location:
    On the Circle of the earth, Southern Man,Canada
    Bent makes the only sense.
    I just would not have gone there for a 12.4x second car. How do you suppose something like that would come to be?

  15. wvdodgemirada

    wvdodgemirada Well-Known Member

    Messages:
    95
    Likes Received:
    11
    Joined:
    Aug 12, 2013
    Location:
    WV
    The final piece was installed today. Nice 3.5 aluminum driveshaft with 1350 u joints. Took car out for small spin, about a mile and all seems well.


  16. BudW

    BudW Moderator Staff Member

    Messages:
    3,797
    Likes Received:
    998
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Nice.

    How many clams did that set you back?

  17. wvdodgemirada

    wvdodgemirada Well-Known Member

    Messages:
    95
    Likes Received:
    11
    Joined:
    Aug 12, 2013
    Location:
    WV

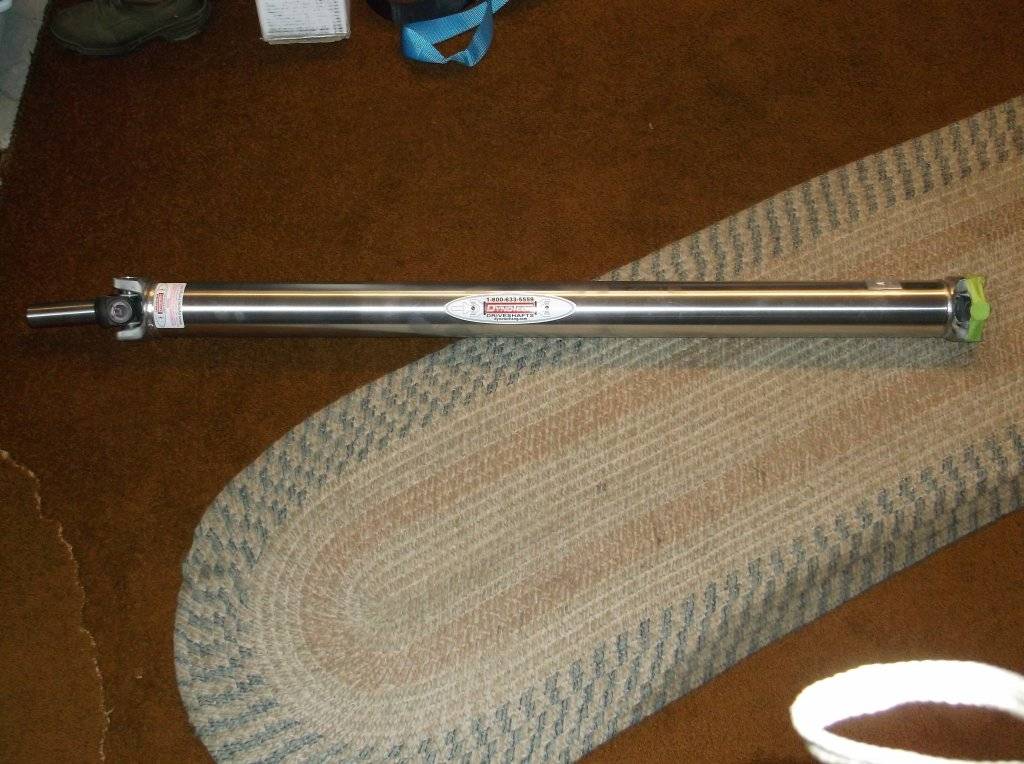

    The driveshaft as you see it in the picture, $475.

  18. BudW

    BudW Moderator Staff Member

    Messages:
    3,797
    Likes Received:
    998
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Smiles - in the picture, it looks like a large toothpick.

    I like aluminum for driveshafts. I just don’t like paying more for an aluminum shaft.
    But hey, you have the bigger 1350 joints now, which is cool.

    BudW

  19. Locomotion

    Locomotion Well-Known Member

    Messages:
    113
    Likes Received:
    13
    Joined:
    Apr 22, 2012
    Location:
    Florida
    FWIW, I've been running solid 7260 Spicer u-joints in my Dart at mid-low 11's for years with a 1.47 60' best. Same joints in the wagon, but it's down with engine issues after a mid-12 second debut. 1350's do offer extra insurance.
