    So . . . you are planning on making several changes to a vehicle – but wants to know how each change actually does affect the vehicle? (Slant6billy comes to mind).
    Well, in this case, I want to know the exact details – for the “seat of your paints” method is not good enough for me.

    What I want, is to get this:

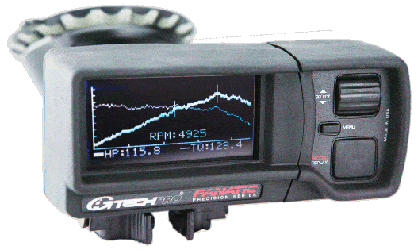

    GTech Pro RR GTech-Pro RR Fanatic ($300 US), but that is too much for me to spend for what I will be getting out of it.

    What I did find was this (an older version) for about $80 (US) on eBay.

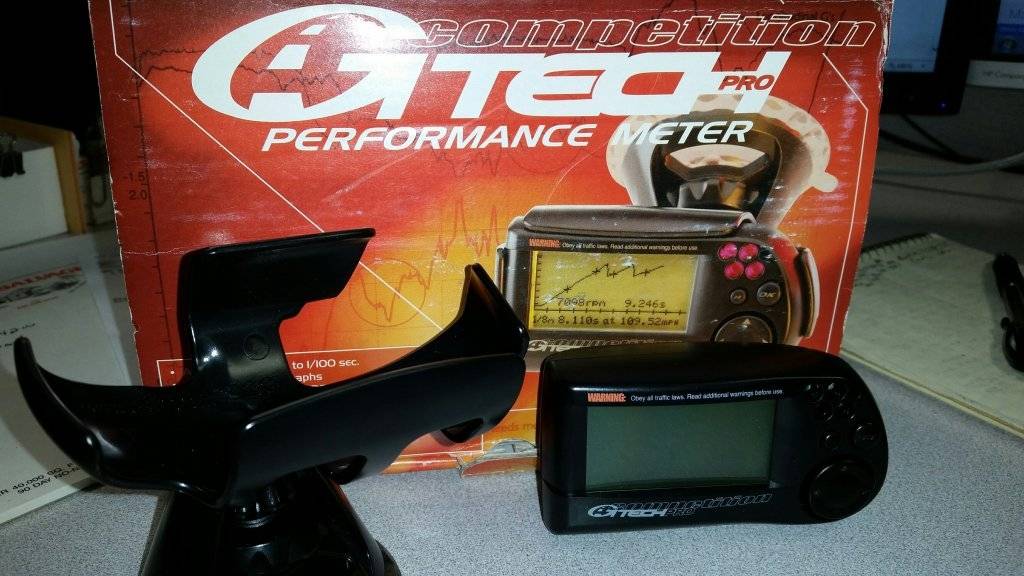

    GTech Pro Competition Performance Meter

    It plugs into cigar lighter and sticks onto the windshield. No OBD2 port required.

    I hadn’t plugged it in yet (my cigar lighter needs a bit of work first, on both cars), but will be posting results soon.

    For the HP and torque readings to be correct, it wants to know the exact weight of car.
    Getting the vehicle weight(s) are on my “to do” list, but I guess I need to bump it up higher on my list, now.
    Now, where to go for scales (yes, I know . . . )

  2. Justwondering

    Justwondering Well-Known Member

    Messages:
    2,762
    Likes Received:
    623
    Joined:
    Aug 7, 2015
    Location:
    North Texas
    Well, i'd drive down to the Farmer's co-op and have them weigh the car. Normally they weigh trailers and grain, etc. But they'll weigh anything-- great guys.

    How does it work if there isn't a dataport?

  3. kkritsilas

    kkritsilas Well-Known Member

    Messages:
    1,755
    Likes Received:
    331
    Joined:
    Jun 21, 2012
    Location:
    Calgary, Alberta, Canada
    Inertial readings ( a small steel ball moves around inside the unit, and it measures how far how fast the ball moved around, basically). The faster it moves indicates acceleration, longer it moves indicates speed. Horsepower/torque are calculated form the weight of the car. Just a general idea, there's a bunch of math involved, which given how cheap microprocessors have become, is not a big deal.

    Not totally accurate, as tire slippage can cause errors. Newer units are probably using GPS signals as well. This one may be as well, I don't know the unit.

    Justwondering likes this.
  4. BudW

    BudW Moderator Staff Member

    Messages:
    3,814
    Likes Received:
    1003
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    The box says it uses GPS as well has “multiple inertial sensors”.
    I have no idea how it works, other than it just does it.

    I agree, it is not totally accurate – but in my case, I can perform tests (solo) in the same manor and location – so it will give me comparison results accurate enough for me – with the exception of temperature and/or wind differences.

    Tire slippage? My ’86 5th Ave won’t hardly slip the tires if driving uphill on watered down ice (. . . for now, anyway).

    You can have 20 different vehicles saved, each one with its own data saved (weight, shift points, tach calibration, etc.).

    Odd thing is you have to pre-set the tach red line, then run engine at 2000 RPM and at 4000 RPM for unit to calibrate its sensors to engine speed. Well, I don’t know of any M-bodes with a tach, so how is a person to know what RPM’s are to calibrate meter with.

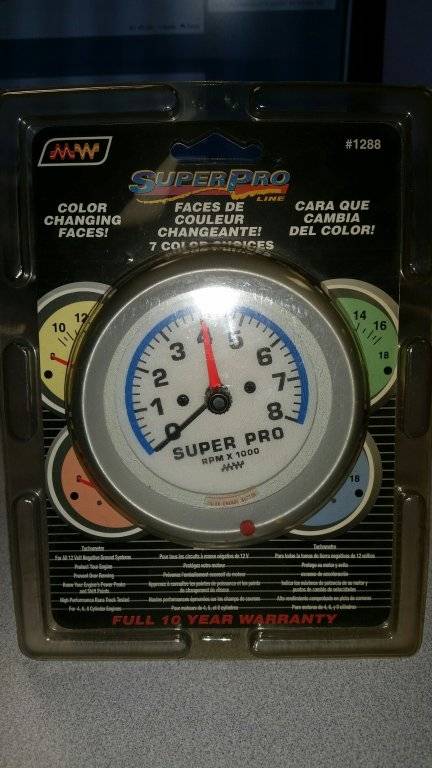

    That said, I went down to parts store to look for tools with Tachometer built into them - but were not present, except for a timing light. I didn’t want to purchase another high end timing light – so I started to look at aftermarket dash mounted tachometers. They had one on clearance for $28.00.
    I’m going to get a length of wire with alligator clips on it, so it can be transferred from vehicle to vehicle (like the Performance Meter can be).


    Hehe, I may have to give the first person to answer correctly a drink, if they can tell me how to check the RPM’s on my diesel pickup (I know how - but something to think about).
    It has no electrical ignition system and a mechanical (not electric) fuel injection pump.

    BudW

  5. 7T8 Custom

    7T8 Custom Well-Known Member

    Messages:
    780
    Likes Received:
    264
    Joined:
    Oct 17, 2015
    Location:
    Vancouver, British Columbia
    TISS sensor will give you RPM.

  6. BudW

    BudW Moderator Staff Member

    Messages:
    3,814
    Likes Received:
    1003
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    The Transmission Input Speed Sensor (TISS) - a very good guess and a correct one - but not in this case.
    The only sensor on (or around) my NV4500 transmission (5 speed manual) is the Transmission Output Speed Sensor (TOSS) - which (only) drives the speedometer.

  7. 80mirada

    80mirada Well-Known Member

    Messages:
    1,026
    Likes Received:
    271
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    Pressure impulse sensor on cylinder number one's fuel injection line.

    I can think of a few other ways I have seen

  8. Cordoba1

    Cordoba1 Well-Known Member

    Messages:
    392
    Likes Received:
    89
    Joined:
    Nov 22, 2011
    Location:
    Northern Illinois
    Hey Bud -- Another option for you: Any chance you have an Android or I-Phone? There are apps that can be dowloaded that perform many of the same functions as a performance meter. Androids and I-Phones have both GPS and gyros built in, so they have the hardware necessary.

  9. BudW

    BudW Moderator Staff Member

    Messages:
    3,814
    Likes Received:
    1003
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Another good guess, but is not the case on my stock '97 Dodge pickup diesel.
    There is no sensors needed for the mechanical fuel injection nor for the manual transmission.

    It does need a computer (PCM/ECM) if it had a gasoline engine and/or if it had an automatic transmission (Throttle Position Sensor - TPS).

  10. BudW

    BudW Moderator Staff Member

    Messages:
    3,814
    Likes Received:
    1003
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    I've tried out a friends phone app, and wasn't impressed.

    the bigger problem I have is I have 9 year old twins, who seam to suck the battery life out of any electronic handheld device within a room of them.

  11. Cordoba1

    Cordoba1 Well-Known Member

    Messages:
    392
    Likes Received:
    89
    Joined:
    Nov 22, 2011
    Location:
    Northern Illinois
    Maybe "Test and Tune" night at your local drag strip?

  12. BudW

    BudW Moderator Staff Member

    Messages:
    3,814
    Likes Received:
    1003
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

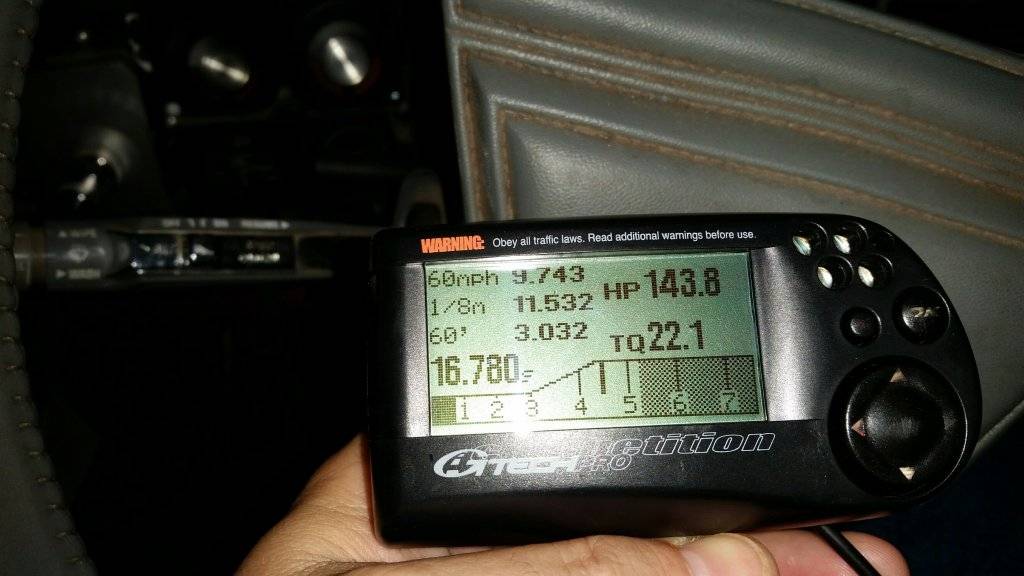

    Ok. I have my first test results in.
    This is on a stock ‘86 5th Ave 318 2-bbl with 74k miles, which I suspect has stopped up catalytic converter(s) (untested - so only a guess).

    The car feels like I could get out and wash windows, for how slow it takes off.

    Yahoo!
    0 to 60 in less than 10 seconds (barley)!

  13. Cordoba1

    Cordoba1 Well-Known Member

    Messages:
    392
    Likes Received:
    89
    Joined:
    Nov 22, 2011
    Location:
    Northern Illinois
    Oh, cool! I didn't see that you already had the meter.... And those results probably aren't that far off from what they were right off the assembly line. They were never fast.

  14. BudW

    BudW Moderator Staff Member

    Messages:
    3,814
    Likes Received:
    1003
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Once I get the cigar lighter working on my wagon, I’ll hook it up.
    It ”feels” like it will run circles around the 5th.

    The wagon came with a lighter assembly and a used ashtray - but no signs of wiring going to it, anywhere in the vicinity.

  15. kkritsilas

    kkritsilas Well-Known Member

    Messages:
    1,755
    Likes Received:
    331
    Joined:
    Jun 21, 2012
    Location:
    Calgary, Alberta, Canada

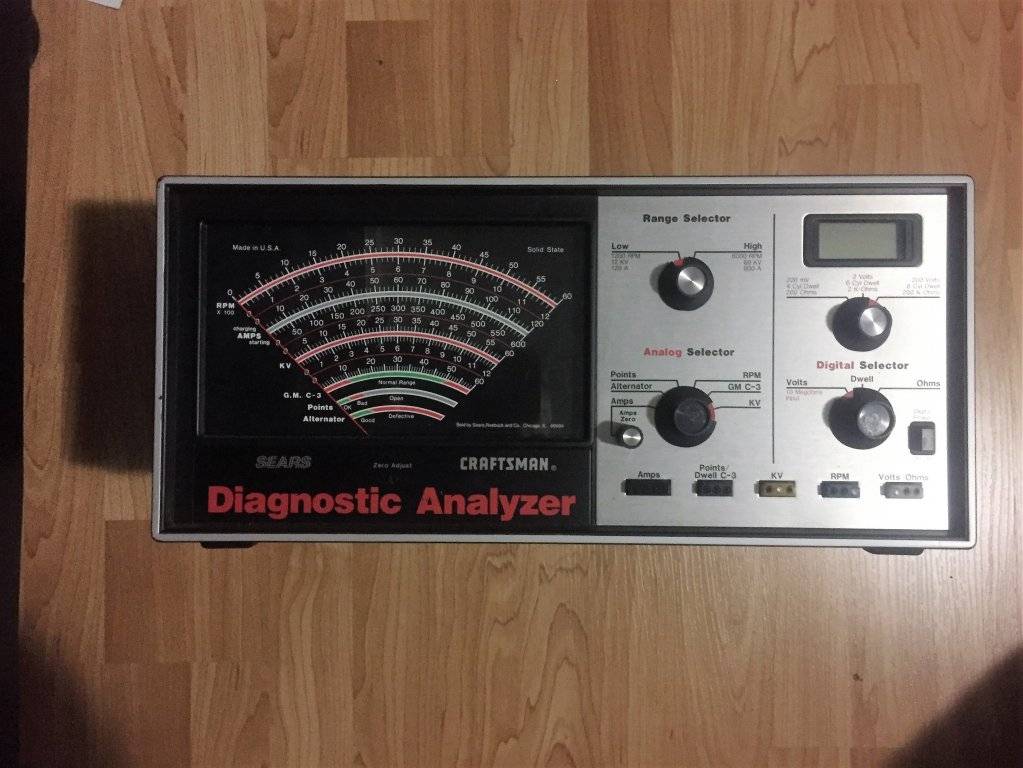

    For the question regarding reading RPM on the 5th Ave., look for an old dwell/tach type meter. They can be simple or complex. Some are just pointer based, some of the later fancier units can actually have an LCD readout. I have a big Craftsmen unit that has an LCD readout (only a few digits) and a pointer that I got at a garage sale for $20 a couple of years back (along with a Sears Penske timing light). Has all of the cables and the manual with it. Almost new, but nobody uses them any more. Looks like this:

    Sears Analyser.jpg

  16. slant6billy

    slant6billy Well-Known Member

    Messages:
    2,849
    Likes Received:
    562
    Joined:
    Dec 21, 2011
    I have one of those G techs in my 97 Ram truck. What I found, is you should run a baseline for a reference and document it. I ran my truck bone stock at the track on a summer test and tune night in 97 w/o the G tech. Flat 16 second run. So in the past 19 years, that baseline run I know which direction to go. The Volare' is more anarchy I get putting some improvements to advance performance, only to lose in one realm where gains in an other don't make up for it. Get a small copybook or somehow document your changes and results. I've been able to go back to a point where the gains were or find where certain things like engine timing or trans adjustments made the eureka moment.

    Plus, I have run my car side by side against my truck and a few stangs. However, that is where anarchy puts the rubber to the road. A trip to the Dyno shop is in order.

  17. BudW

    BudW Moderator Staff Member

    Messages:
    3,814
    Likes Received:
    1003
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    That is the plan.
    I learn a ton off of other people - so I see no reason to not post what I've learned, for others.

    I have a feeling your ‘97 Ram is in a different class than my '97 is.
    '97 Dodge ¾ ton 5.9L Cummins diesel, 5 speed, 2*4, Dana 80, long bed and crew cab. 245k miles and it gets me 23-24 MPH on highway.
    It weighs in at 8,950 pounds (with me in it) – 90% of which is over the front tires.

    The only modification I know about is the previous owner removed the 30 gallon muffler and replaced it with a piece of 3” (or larger) straight pipe.

    Get into anything slightly muddy, sandy or icy, and you ain’t going anywhere.

  18. slant6billy

    slant6billy Well-Known Member

    Messages:
    2,849
    Likes Received:
    562
    Joined:
    Dec 21, 2011
    Man, that is the truck I should have bought. This is mine: sst cragars.jpg

  19. BudW

    BudW Moderator Staff Member

    Messages:
    3,814
    Likes Received:
    1003
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Your truck definitely wins in the looks department. Mine is just plain ole white.

    I think the two trucks might be fairly matched up in the ¼ mile – after you add about 4,000 pounds in the bed, first.

  20. Captain Caravelle

    Captain Caravelle Moderator--Mopar Maniac

    Messages:
    10,789
    Likes Received:
    1121
    Joined:
    Jan 29, 2012
    Location:
    Hogtown, Ontario
    I have one of those older G Tech's.....
    Never have played with it yet.
