Stepping into uncharted territory.....

Exterior Body and Trim

  1. Jnfbodyguy83

    Jnfbodyguy83 Well-Known Member

    Messages:
    368
    Likes Received:
    24
    Joined:
    Feb 29, 2012
    Location:
    Tonwanda, ny

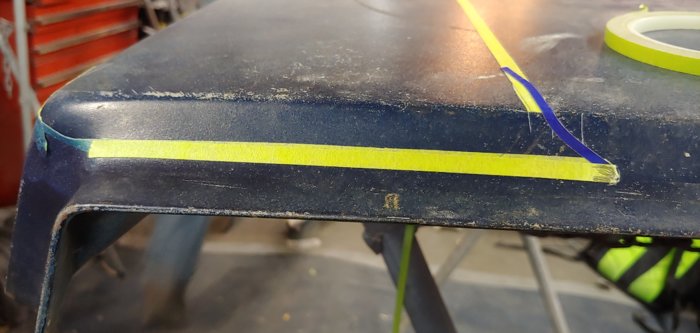

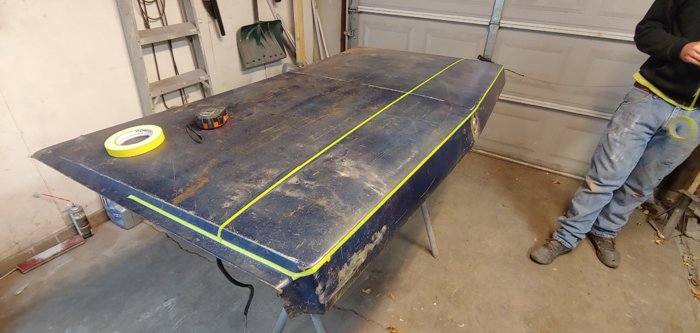

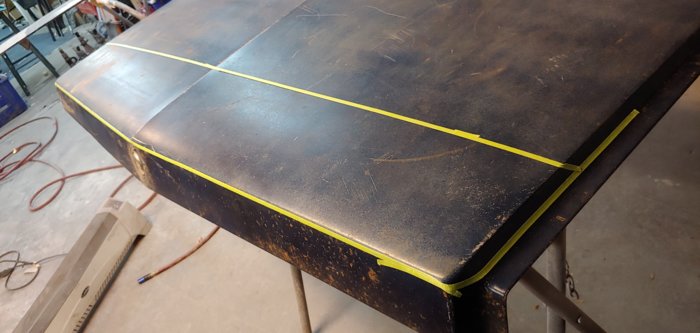

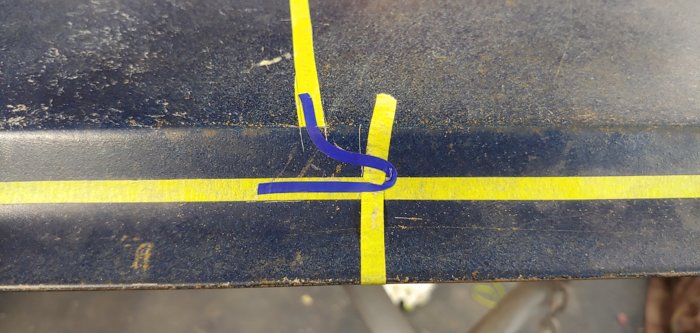

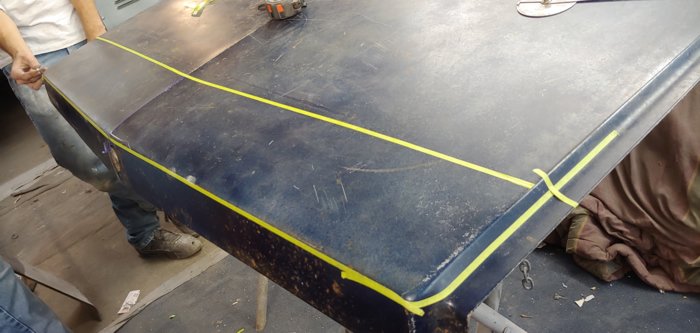

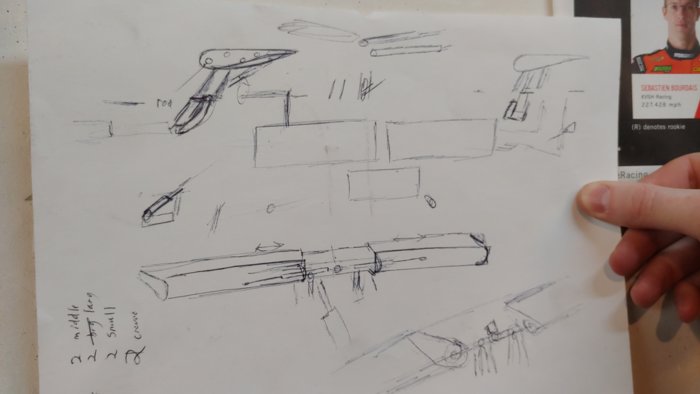

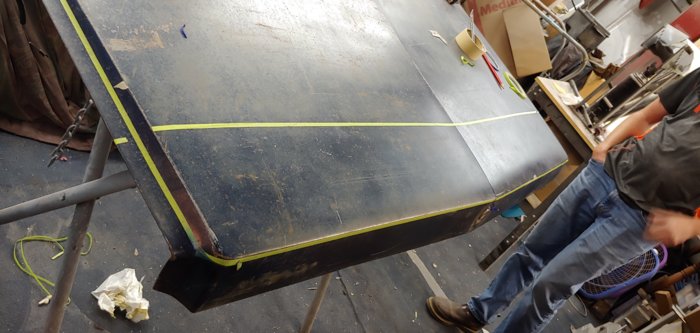

    So I've been at a stand still on what to do aesthetically with the doba. Its not that I dont like the look, its just that I'd like to do something more to the car and take it to that next level. Right now the car has a modern wheel/tire set up, the side cut t/a/ aar style exhaust and a third gen firebird spoiler. What I've finally came up with is a active aero package for the car. So my ideas are to make a custom hide away spolier based on a newer generation Porsche panamera and a drop down chin spolier off of the alfa romeo guilia. So far we've mapped out a design on a spare trunk lid and have made a foam mold made so far. We're looking to have the whole spolier done by carisle next year or if we cant make it to that then at least the end of next year. I have some pics for a little of the progress, but will upload and update when any progress is made.










    Duke5A likes this.
  2. barbee6043

    barbee6043 Well-Known Member

    Messages:
    265
    Likes Received:
    57
    Joined:
    Feb 26, 2017
    Location:
    s e texas
    Interesting. Get 'er done!

  3. Jnfbodyguy83

    Jnfbodyguy83 Well-Known Member

    Messages:
    368
    Likes Received:
    24
    Joined:
    Feb 29, 2012
    Location:
    Tonwanda, ny

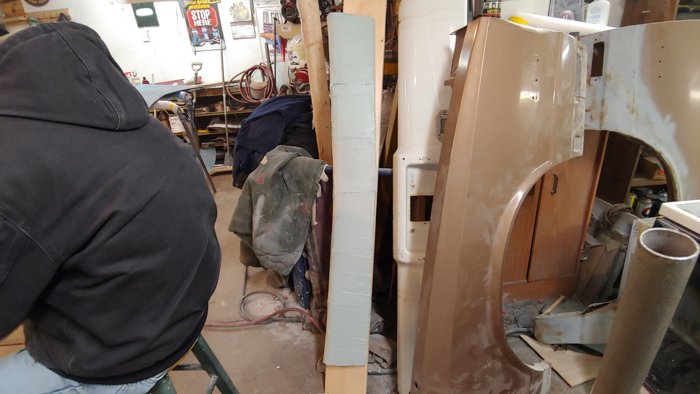

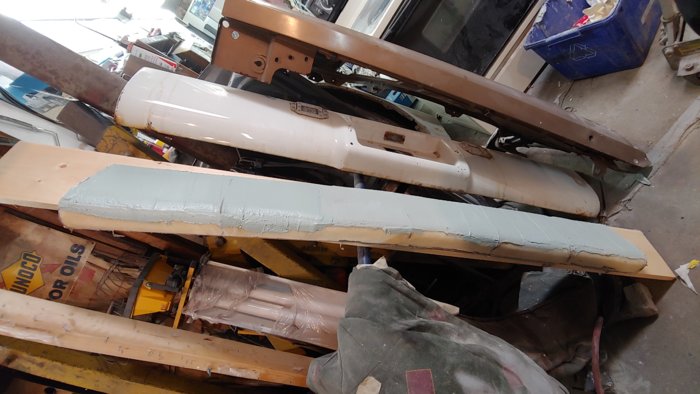

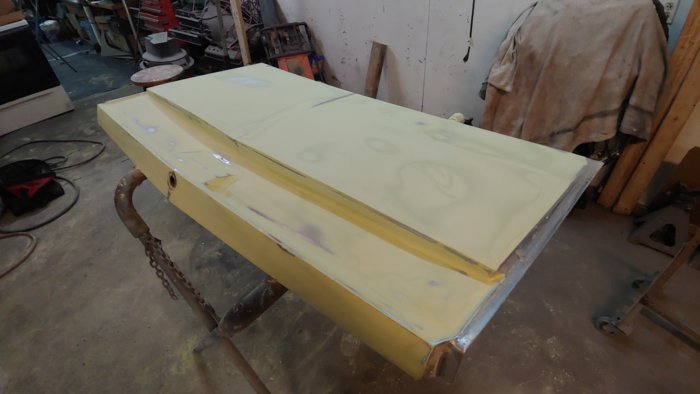

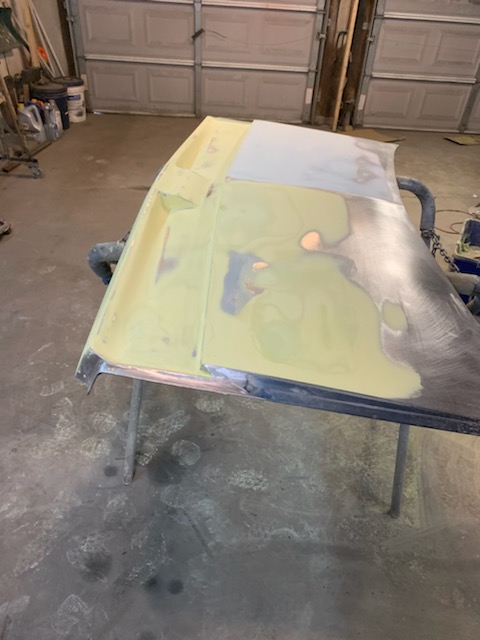

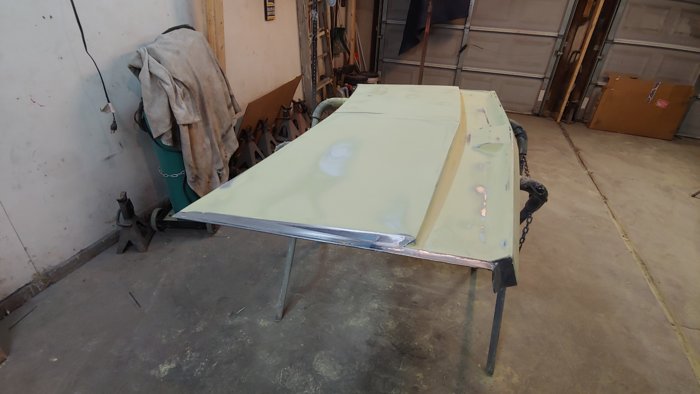

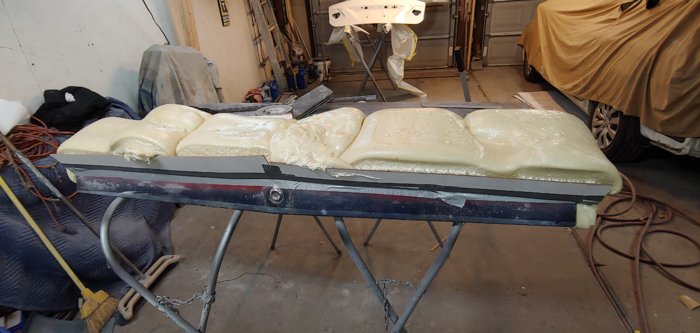

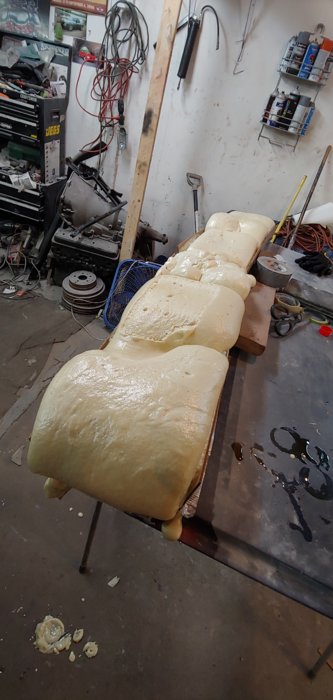

    So we ended up trimming the foam down and sanded it to get the tear drop shape we wanted for the bottom. Next we took some body filler and threw a layer so we could smooth out the imperfections.





  4. Jnfbodyguy83

    Jnfbodyguy83 Well-Known Member

    Messages:
    368
    Likes Received:
    24
    Joined:
    Feb 29, 2012
    Location:
    Tonwanda, ny

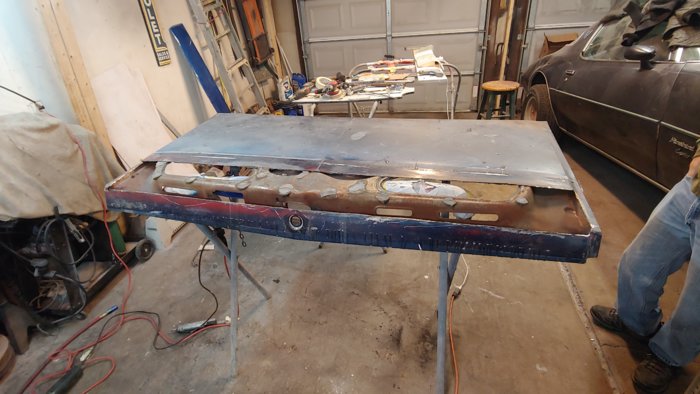

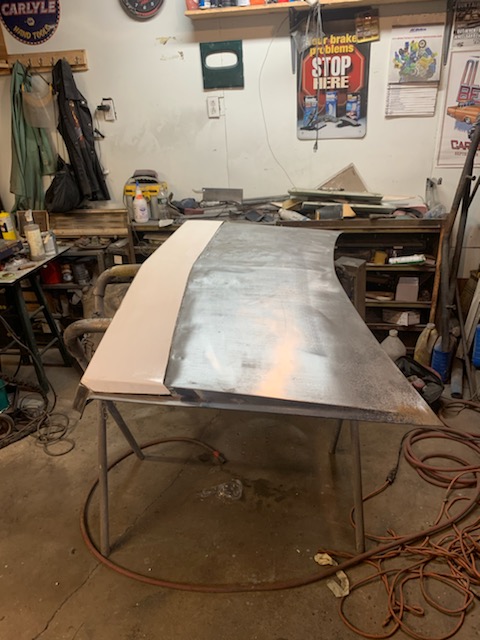

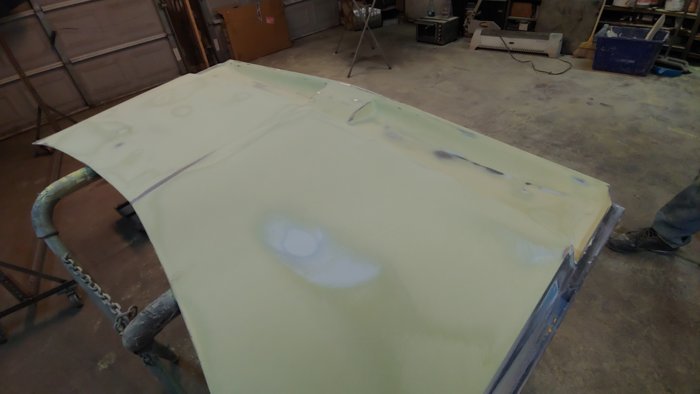

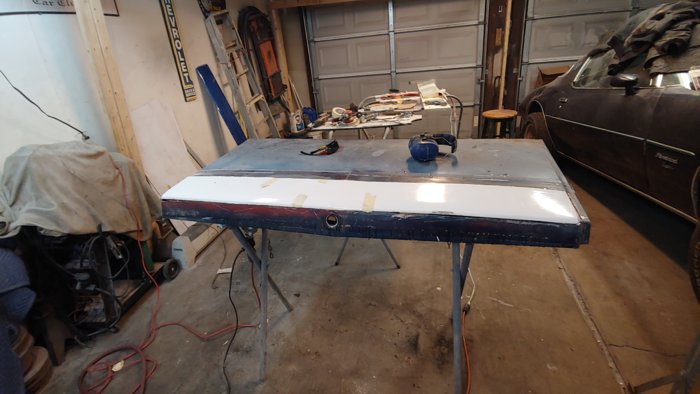

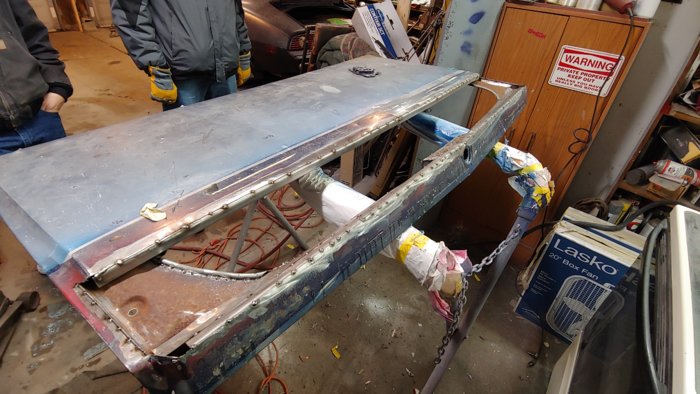

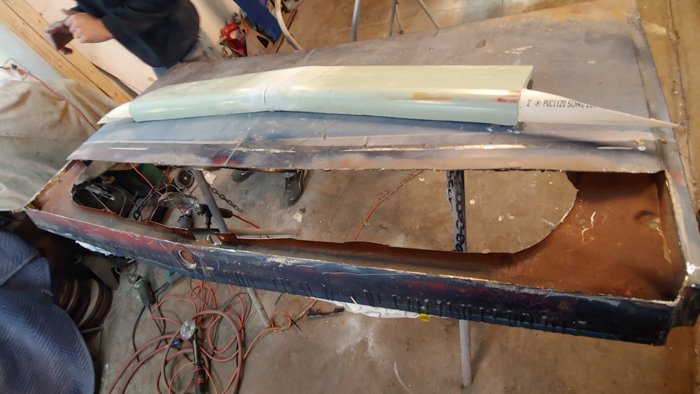

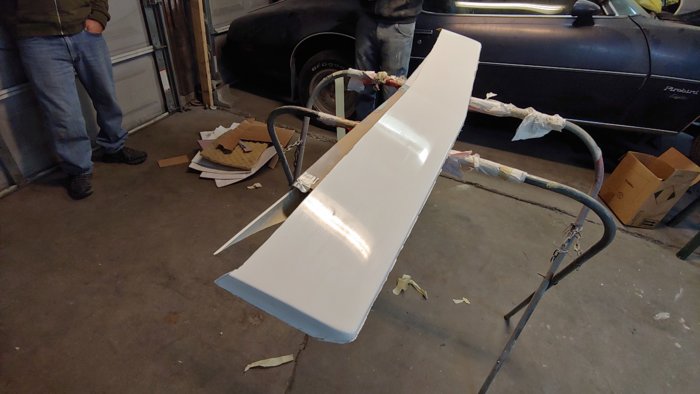

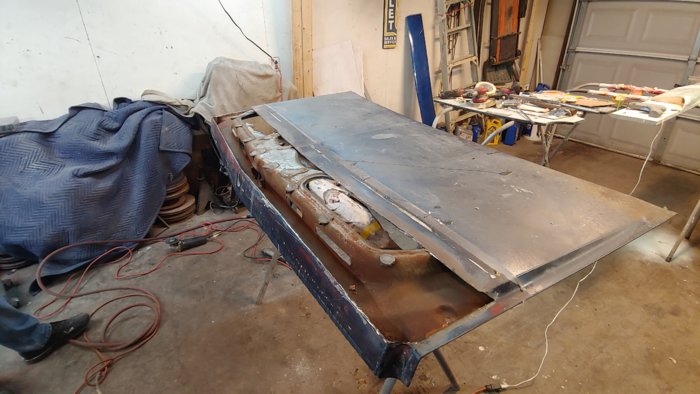

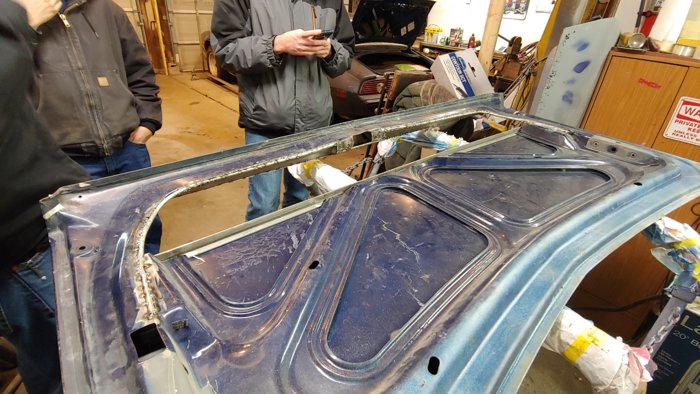

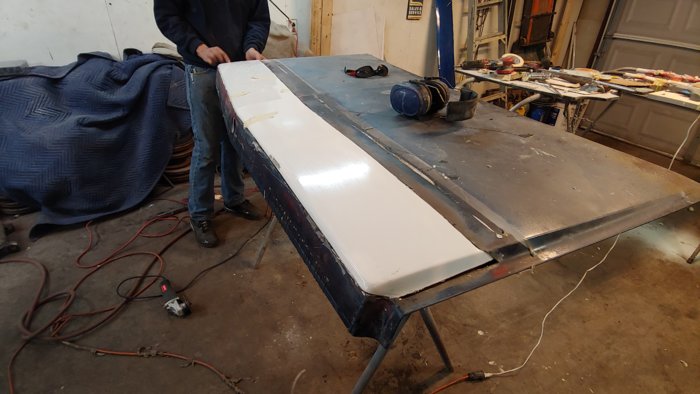

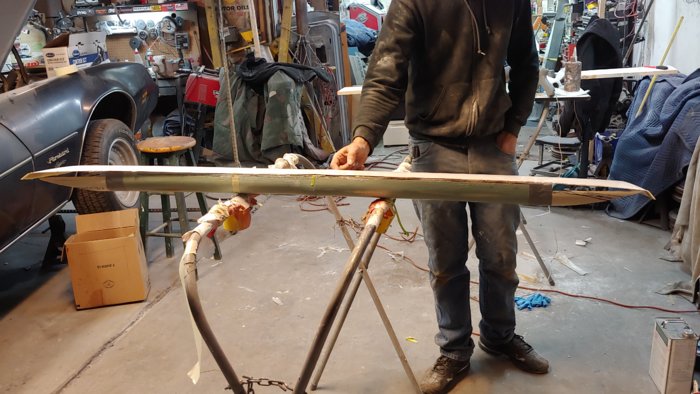

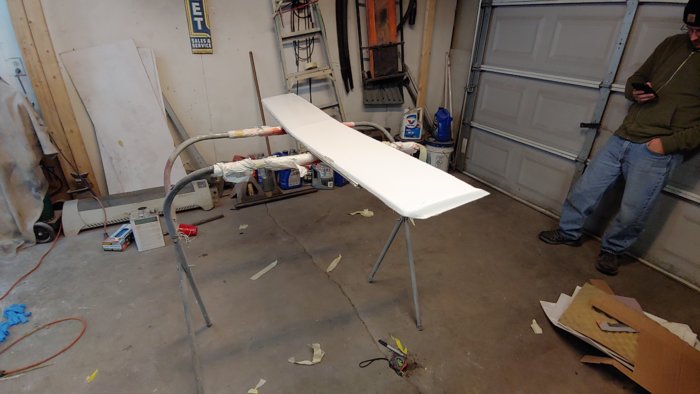

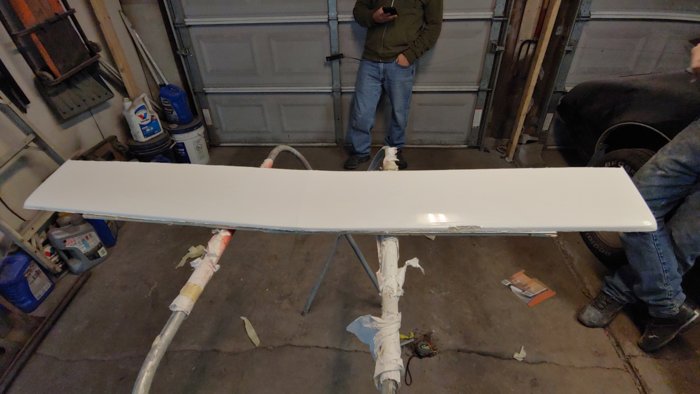

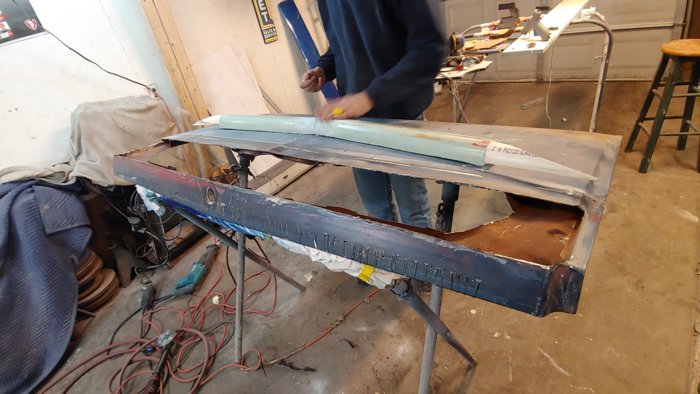

    More progress made over the last few weeks. We coated the deck lid with some gel coat and made our first mold of the upper half of the spoiler. Last night we cut the back of the deck lid open and tested the mold and lower half of the spoiler. We then cut the support out and retested from there. Next is restructuring the deck lid and fine tuning the opening.











    Duke5A likes this.
  5. Duke5A

    Duke5A Well-Known Member

    Messages:
    596
    Likes Received:
    209
    Joined:
    Apr 6, 2018
    Location:
    Michigan
    This is so damn cool! Is it going to be speed controlled?

    Jnfbodyguy83 likes this.
  6. barbee6043

    barbee6043 Well-Known Member

    Messages:
    265
    Likes Received:
    57
    Joined:
    Feb 26, 2017
    Location:
    s e texas
    I agree! Cool work!

    Jnfbodyguy83 likes this.
  7. Jnfbodyguy83

    Jnfbodyguy83 Well-Known Member

    Messages:
    368
    Likes Received:
    24
    Joined:
    Feb 29, 2012
    Location:
    Tonwanda, ny
    Yeah. Its going to be activated by some sort of air speed sensor. We're thinking itll be active at thruway speeds. From there the spoiler will hit a second mode say around 75-80 and change the pitch of the spoiler for more downforce. The front will also have a drop down chin spoiler that will activate at the same time as well.

  8. Duke5A

    Duke5A Well-Known Member

    Messages:
    596
    Likes Received:
    209
    Joined:
    Apr 6, 2018
    Location:
    Michigan
    Have you worked out the electronic yet? I'm guessing something similar to what aircraft use for speed like a pitot tube? GPS speedometer might be easier. The aftermarket stuff typically has outputs for other equipment You could use an Adruino to control the progressive deployment of the spoilers. A stepper motor could be used to drive it so the controller knows how far up it is at all times.

    Sorry, this is a really cool project and you got me thinking about the controls.

  9. Jnfbodyguy83

    Jnfbodyguy83 Well-Known Member

    Messages:
    368
    Likes Received:
    24
    Joined:
    Feb 29, 2012
    Location:
    Tonwanda, ny
    Some of the electronics are planned out for what were using. We were planning on using a raspberry pi for the brain, but found out it wouldn't be able to handle the output. So we are going with a audrino board. A buddy of mine is creating a program for it and using the pitot tubes did cross our minds since the imsa guys use those for the telemetry on the cars. To make the wing function we're going with actuators. From what my buddy said he can set a certain parameter to where we want it to extend out to. The spoiler is actually going to slide in on itself to blend in with the stock design of the deck lid. Then when it hits the speed we set it at, it will pop up and slide out to the top body line of the rear quarters. Closest design to this is the 3 mode spoiler off of the newer Porsche panameras. The only difference is theirs folds out. The easy part is going to be the drop down chin spoiler. That'll just be a aluminum frame and move up and down with 2 actuators.

    Duke5A likes this.
  10. 89.Fifth

    89.Fifth Well-Known Member

    Messages:
    403
    Likes Received:
    90
    Joined:
    Sep 5, 2015
    Location:
    New York, NY
    Pitot tubes? You guys are crazy. Keep it simple. You can put an output speed sensor on the transmission:

    speed sensor for 727/A833

  11. Jnfbodyguy83

    Jnfbodyguy83 Well-Known Member

    Messages:
    368
    Likes Received:
    24
    Joined:
    Feb 29, 2012
    Location:
    Tonwanda, ny
    I didn't think of that. We may consider thst route as well. As long as we can receive a signal from the sensor to the audrino board, it should work out.

  12. Jnfbodyguy83

    Jnfbodyguy83 Well-Known Member

    Messages:
    368
    Likes Received:
    24
    Joined:
    Feb 29, 2012
    Location:
    Tonwanda, ny

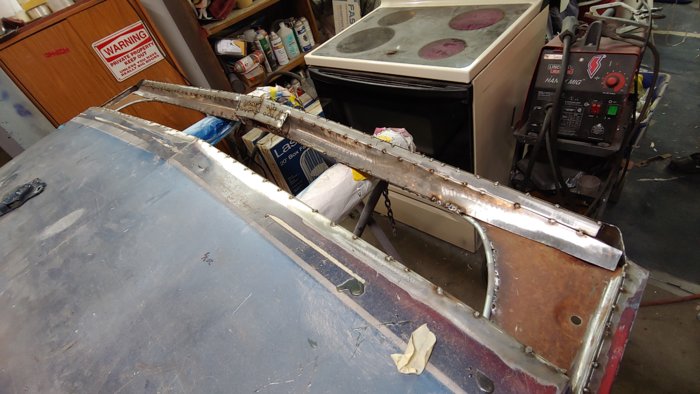

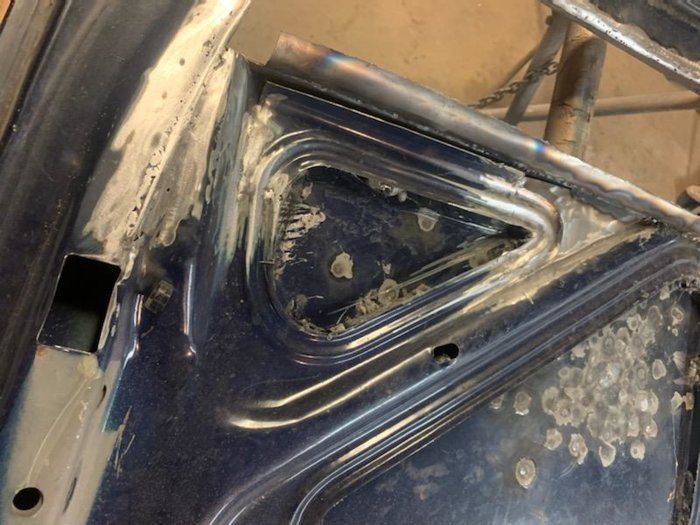

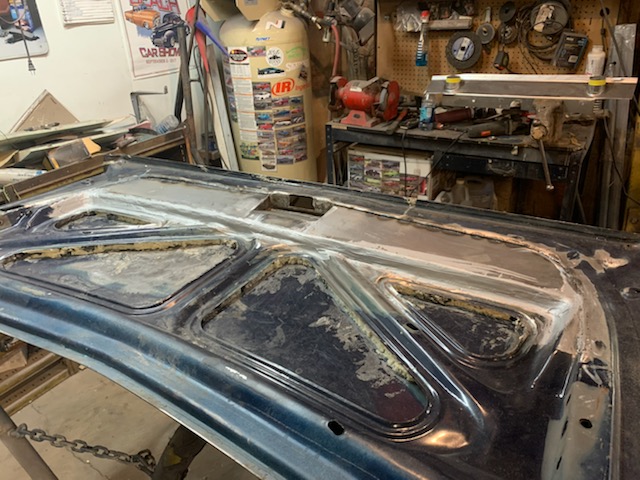

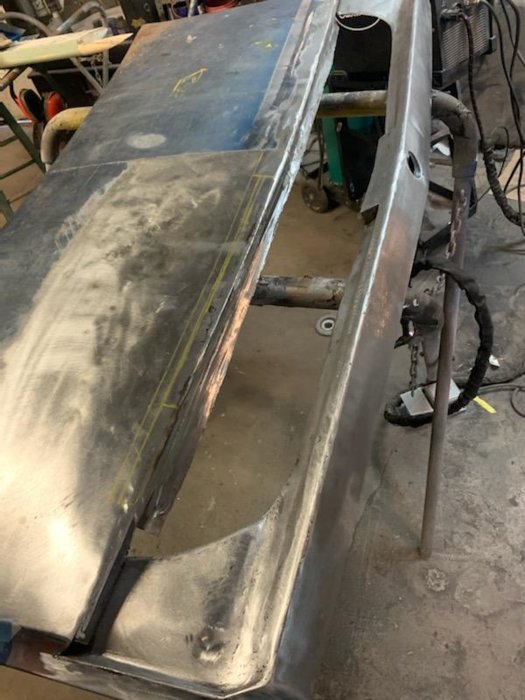

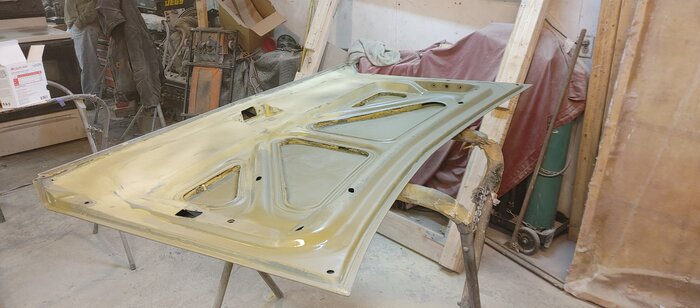

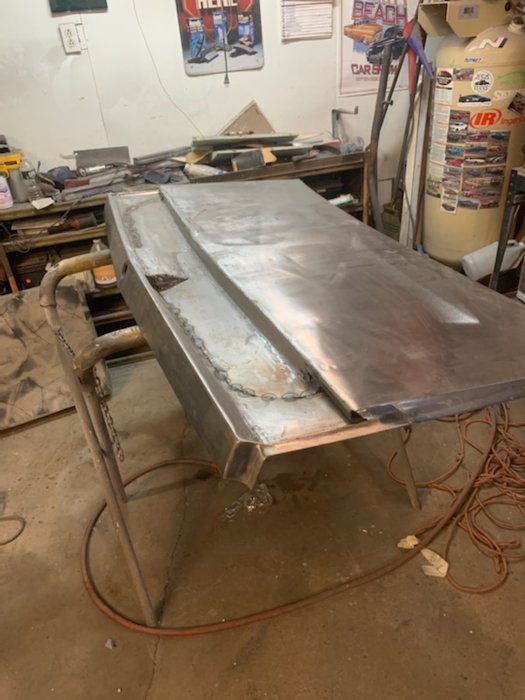

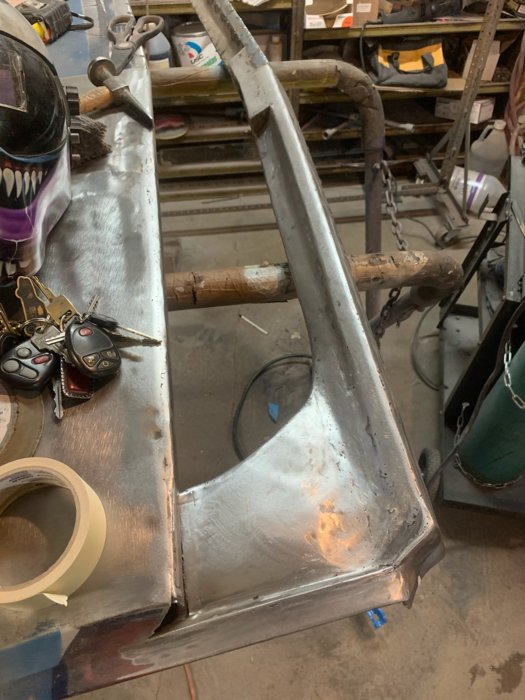

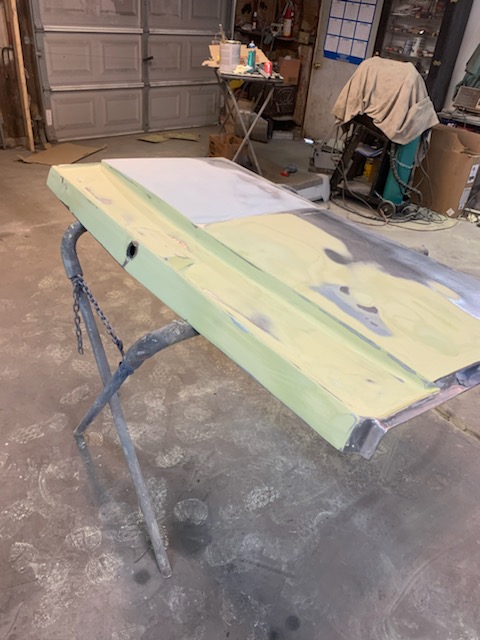

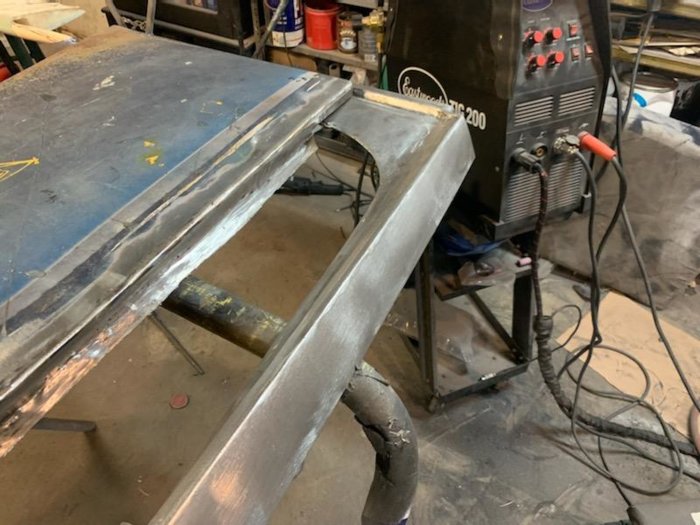

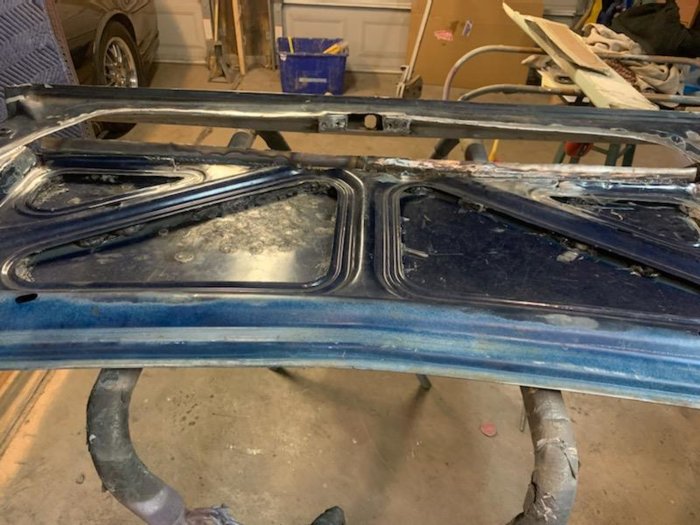

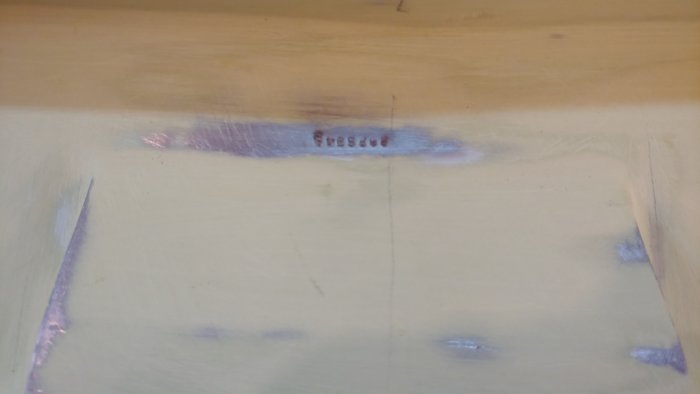

    Did some metalwork over the weekend on the deck lid. We have a general design layout of the tray that the spoiler will sit in. The fit and finish is close to where we want it. We'll reuse most of the stock reinforcement work and blend it back in to the deck lid to still give it a factory look. Next will be prepping location for the actuators.




    barbee6043 and Duke5A like this.
  13. BudW

    BudW Moderator Staff Member

    Messages:
    4,062
    Likes Received:
    1065
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Looking nice.
    The only comment I can think of is (in addition to what you are planning) is to make a car show mode where the two items will extend, then after 5 min (or so) retract then after another 5 min extend again (or similar) – maybe.
    BudW

    Duke5A likes this.
  14. Aspen500

    Aspen500 Well-Known Member

    Messages:
    4,603
    Likes Received:
    1336
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    I agree. All the speed deployed spoilers I've ever run across on production cars goes off the speed signal.
    Most of the other stuff you are talking about (raspberry pi, audrino board), may as well be speaking Klingon, LOL! Man I feel old all of a sudden.:eek:

  15. Opticon77

    Opticon77 Well-Known Member

    Messages:
    253
    Likes Received:
    127
    Joined:
    Apr 15, 2018
    Location:
    SE PA
    It explains how he arrived at the most mechanically complicated method for measuring vehicle speed... YOU try critical thinking in structured text.

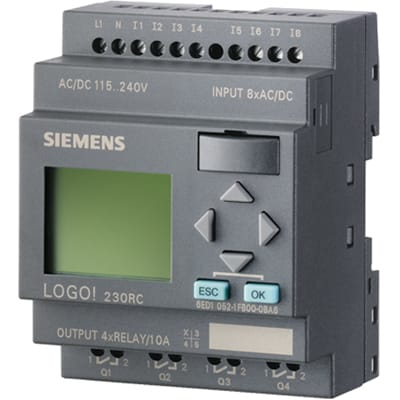

    <- Uses a Siemens "Logo!" PLC to run the I/O of brakes, turnsignals, and flashers on an 1985 Omni.


  16. Aspen500

    Aspen500 Well-Known Member

    Messages:
    4,603
    Likes Received:
    1336
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    Not meaning to hijack 83's thread........I'm an auto tech and work on vehicles with multiple modules that communicate on multiple networks and use multiplexed sensors, etc, etc, etc, and am able to diagnose and repair them but, when it comes to building a system from scratch,,,,,,,complete confusion! I'm in awe of those that can do things like that.

    You do know that when it's all sorted out and working, we will demand a video, right?:D
