Eric why are you playing with cooling system ? Does it get to hot ?
Cannot go wrong with a 3 core MODINE type ......
It was running 195 to 200 with that tiny radiator. That Modine type won't look stock. This one does and I can use a stock fan shroud.


1976RR

Well-Known Member
Joined
May 3, 2011
Messages
119
Reaction score
1
Actually ... you can get cores that can be installed using your tanks ... i did it on my V RR... prior to selling it ... and i had it done on a previous V i had .. you can get MODINE style cores in various sizes... maynot be called modine but other manufac......


bremereric

FMJ Body Moderator
Joined
Feb 25, 2011
Messages
3,555
Reaction score
245
Location
Jackson Missouri
Actually ... you can get cores that can be installed using your tanks ... i did it on my V RR... prior to selling it ... and i had it done on a previous V i had .. you can get MODINE style cores in various sizes... maynot be called modine but other manufac......
Frank this is the heavy duty/AC repacement radiator for these cars. It has two rows of 1/2" tubes and is huge compared compared to the tiny one I took out. I will post comparison pictures of them side by side.


1976RR

Well-Known Member
Joined
May 3, 2011
Messages
119
Reaction score
1
Modine style have smaller tubes ... more tubes on surface ..+ being a 3 row ... You should be able to use your tanks and still bolt up shroud ...
My radiator in the last car i had was the smaller one ( non-ac car ) .. with a electric fan/shroud ONLY ... no belt driven fan ..
They build me a rad ... using my original small tanks , and i could of used original shroud if i wanted to ... but opted to use elec fan ..


bremereric

FMJ Body Moderator
Joined
Feb 25, 2011
Messages
3,555
Reaction score
245
Location
Jackson Missouri

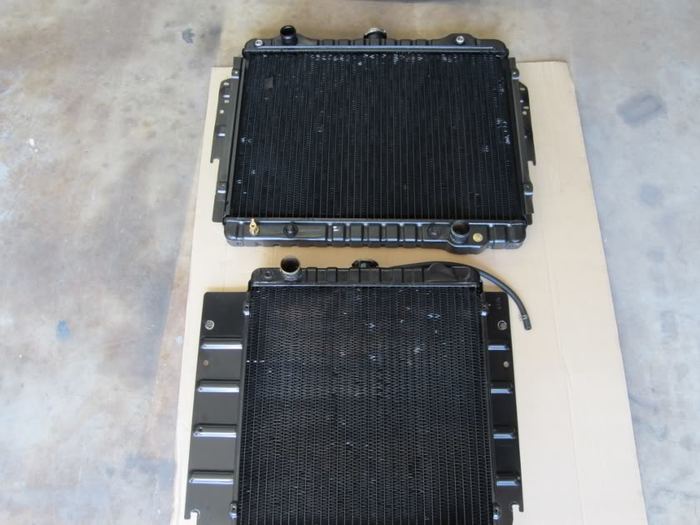

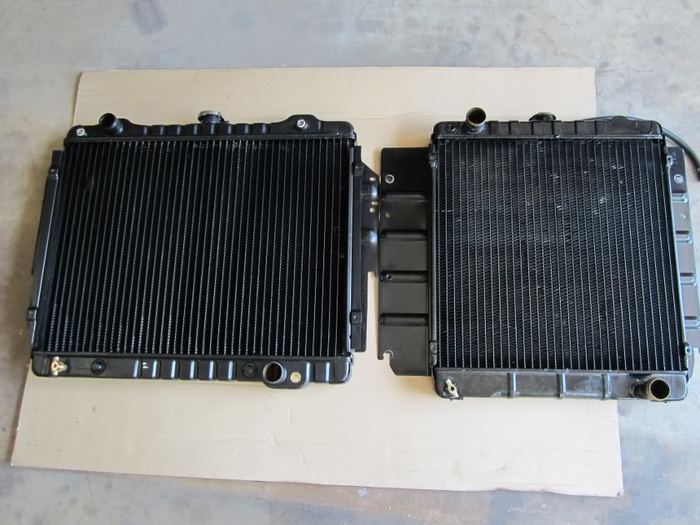

I finished fab on the radiator brackets today and got them painted. I will show pictures of them in the car tomorrow but tonight I got the side by side and top over bottom comparison of the old versus the new radiator.





bremereric

FMJ Body Moderator
Joined
Feb 25, 2011
Messages
3,555
Reaction score
245
Location
Jackson Missouri

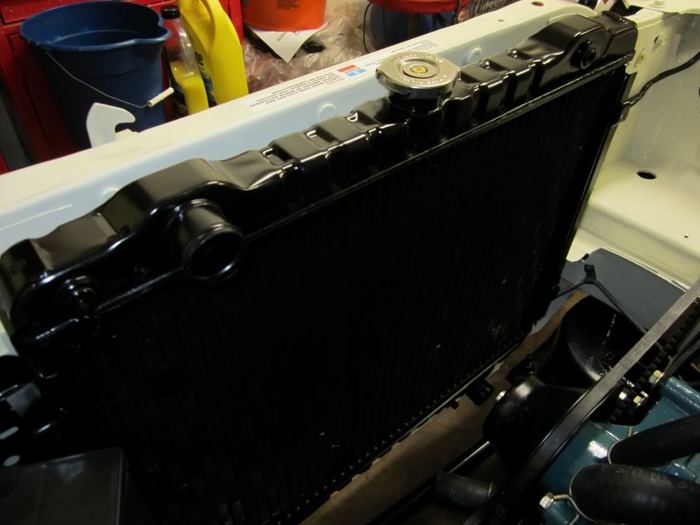

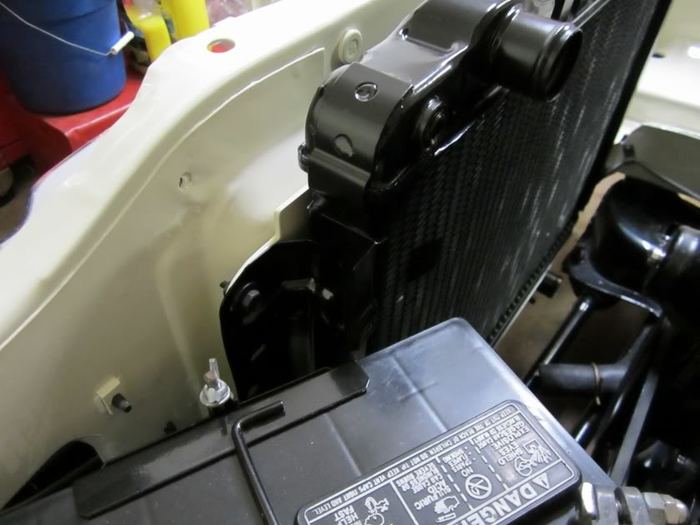

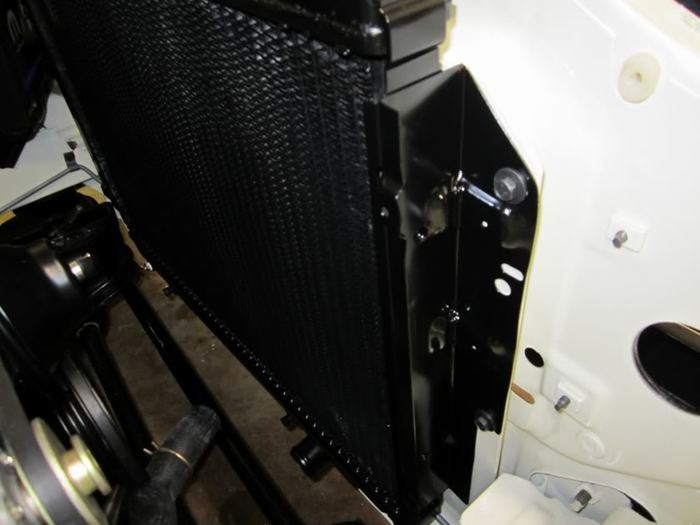

It's in there.

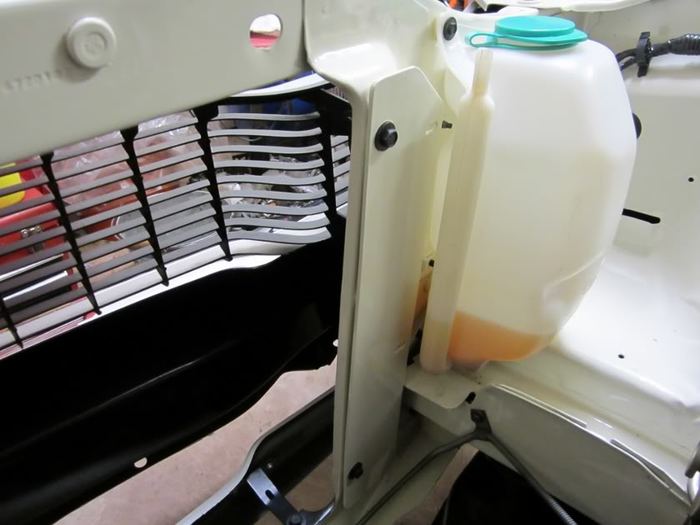

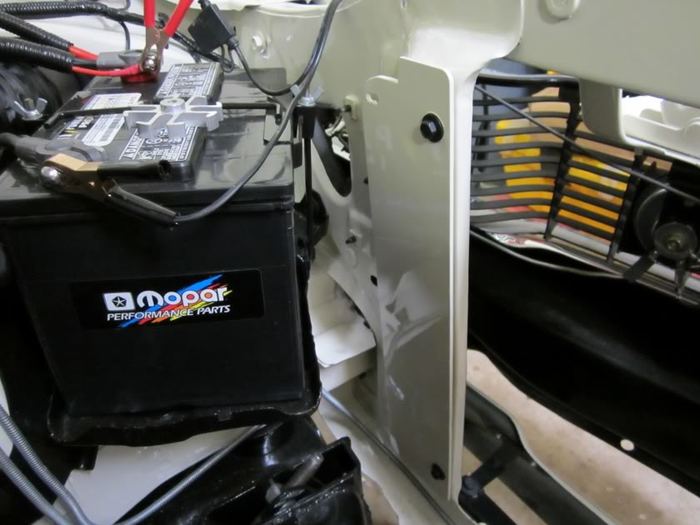

The brackets and radiator that is. Pictures speak for themselves. Note that little flying bugs love white cars at night. I cleaned the ones under the overflow tank after removing it to get to the radiator bolts.

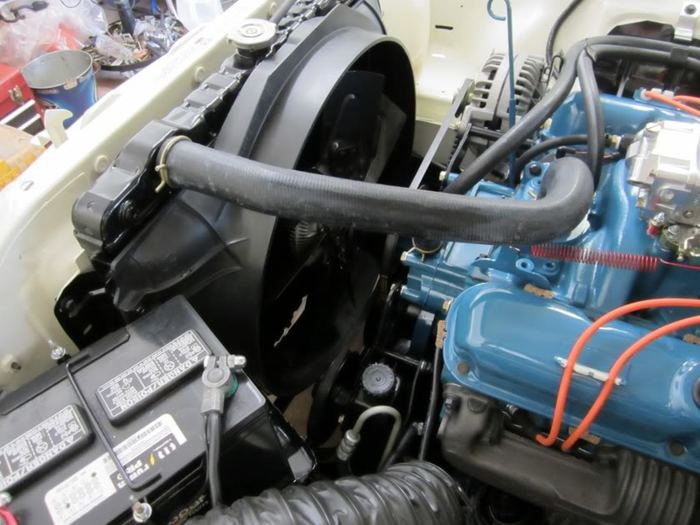

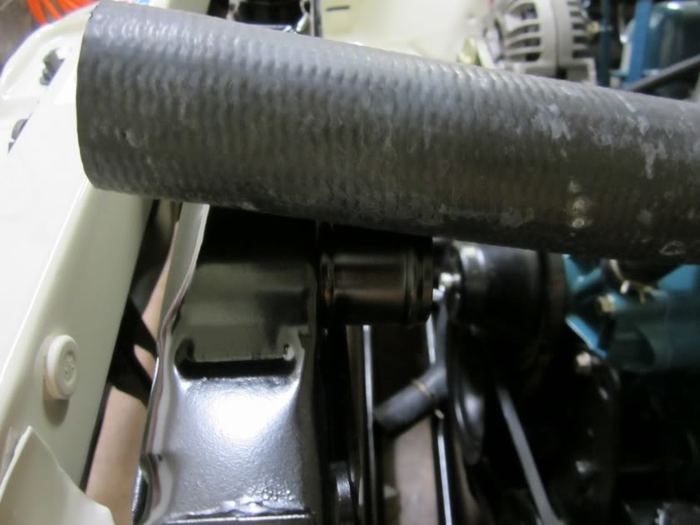

And cut to fit new upper hose.



bremereric

FMJ Body Moderator
Joined
Feb 25, 2011
Messages
3,555
Reaction score
245
Location
Jackson Missouri

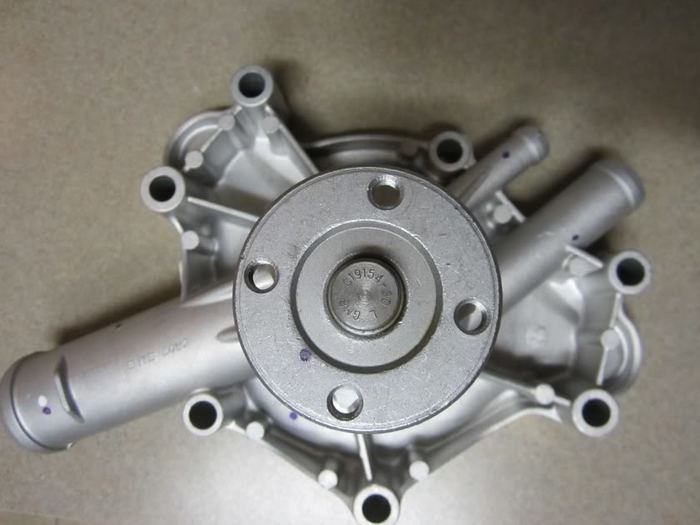

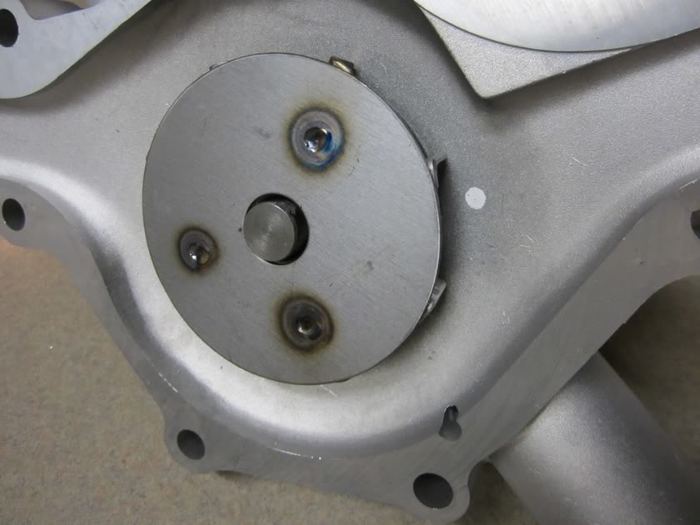

I am going to give this Milidon pump a try with the new radiator. I like the idea of the anti-cavitation plate and it still is an eight impeller pump.





Mroldart2u

Well-Known Member
Joined
May 4, 2011
Messages
262
Reaction score
1
Location
Amarillo,Tx
They do make an anti-cavitation kit for waterpumps Eric. But if you were already going to replace the water pump, no harm no foul... The kit is just the disc, and 3 rivets, so now you know... :wave:


YY1

Well-Known Member
Joined
Nov 6, 2011
Messages
56
Reaction score
0
Wow! How often do you eat off that engine compartment?
Seriously, that's damm clean!!!


bremereric

FMJ Body Moderator
Joined
Feb 25, 2011
Messages
3,555
Reaction score
245
Location
Jackson Missouri

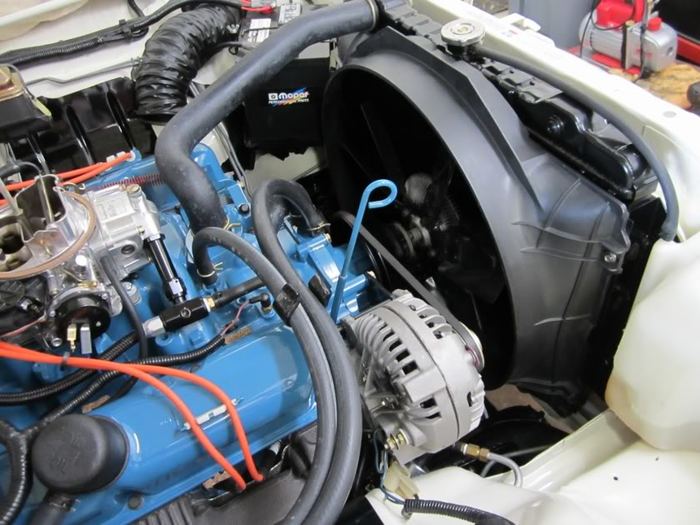

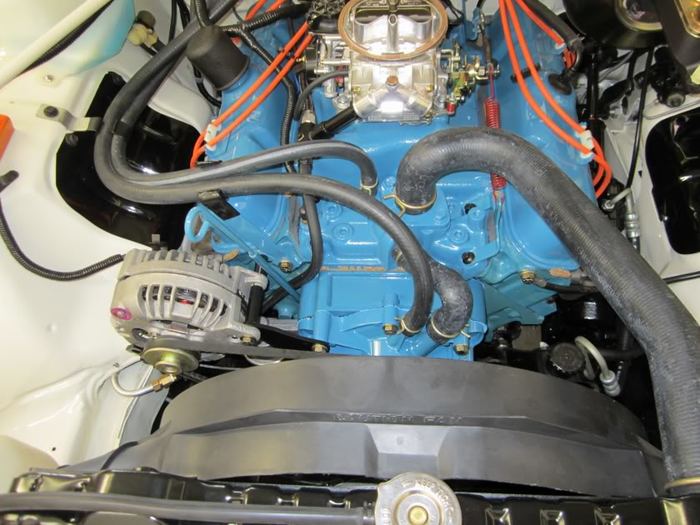

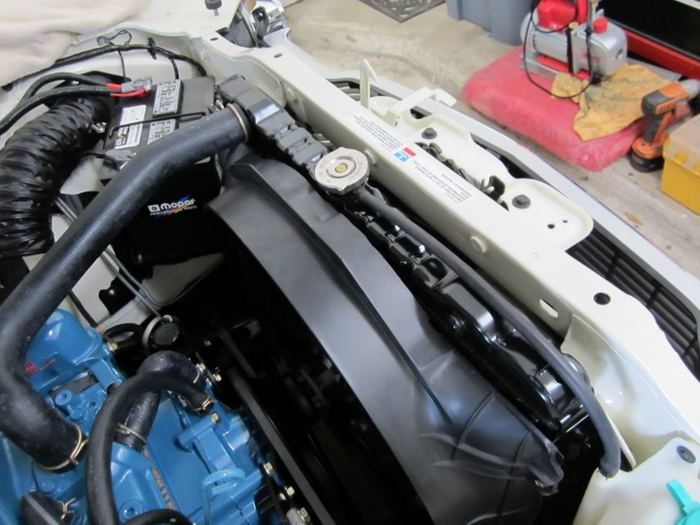

It's been a while but the big radiator is in and ready to go

I got my car just about ready to start again. I got everything installed including the new water pump and radiator. I will verify the firing order tomorrow and go for the fire in hole. I have it filled up with distilled water tonight with no leaks.









jasperjacko

Well-Known Member
Joined
Dec 4, 2011
Messages
1,670
Reaction score
250
looks real nice Brem. where can i get two of those air intake hoses?


dipin87

Member
Joined
Apr 3, 2012
Messages
18
Reaction score
0
Any updates on how the radiator worked out?
The radiator that you purchased what car was
it ordered for? Reason I ask is cause I have a
70 Dart with a 22in two row radiator that is not
enough to keep my 360 cool in the 80 and 90
temps going on right now. I thought about a 26in
radiator cause I have a fan shroud and clutch fan
from a 73 Fury already. What temp thermastat are
you running?


bremereric

FMJ Body Moderator
Joined
Feb 25, 2011
Messages
3,555
Reaction score
245
Location
Jackson Missouri
In 90 temps in my garage it idled at 165 and my t-stat is a HF 160 Milodon with three small holes drilled in it.


dipin87

Member
Joined
Apr 3, 2012
Messages
18
Reaction score
0
Whats the purpose of drilling the three little holes? And where exactly did you drill the holes? Great looking car by the way.


bremereric

FMJ Body Moderator
Joined
Feb 25, 2011
Messages
3,555
Reaction score
245
Location
Jackson Missouri
Whats the purpose of drilling the three little holes? And where exactly did you drill the holes? Great looking car by the way.
Prevent and correct steam pockets. I drilled them on the very sides of the thermostat. It's a Milodon HF one that is different than a standard thermostat.
