Disaster strikes...grrhh...that plastic wiper arm thingy!!!

Exterior Body and Trim

  1. Jonnyuma

    Jonnyuma Well-Known Member

    Messages:
    281
    Likes Received:
    64
    Joined:
    Nov 6, 2011
    Location:
    A Dirty Little Town in NW Oregon
    My swich is actually on the dash, down low to the left... same principle though.

    And the "Like" is for the advice, not for you getting stuck 10 miles out with no wipers... that sucks.

    4speedjim likes this.
  2. Mr C

    Mr C Well-Known Member

    Messages:
    268
    Likes Received:
    71
    Joined:
    Apr 22, 2014
    I always boil some water and soak the plastic bushings in the water for a bit to soften them prior to installation.

    Joe12459 and 4speedjim like this.
  3. M_Body_Coupe

    M_Body_Coupe Well-Known Member

    Messages:
    127
    Likes Received:
    28
    Joined:
    Aug 19, 2013
    Location:
    Windsor, ON, Canada
    Well, the bushing install went pretty smooth...lubed it up with some White Lithium grease, did not even have to heat it up or anything, slowly it went through onto the linkage arm.

    GREAT....right??? LOL

    ...and you'd be mistaken, just as I was.

    Turns out that the 90-deg wiper motor is somewhat re-located in-between the three mounting studs, which mean that the center wiper motor output shaft is no longer where the center of the original motor was...subsequently, I actually can not even hook up the linkage, it is simply too long.

    So I'm thinking there are three possible scenarios here:

    1) Mopar used a different (shorter) wiper linkage (the part that hooks up to the wiper motor arm and to the wiper pivot points

    2) Mopar used a shorter wiper motor arm (I do not think this is the case since the 90-deg motor came with an original arm and the part number was identical to my NOS piece)

    3) Mopar used the same wiper motor arm and the same wiper linkage and I simply need to re-index the whole installation on my ride, that would be the preferred possibility since it's easy enough to pop the wiper arms off and re-align things

    So before I proceed further, can anyone tell me if I'm on the right path here?

    Thanks everyone! (...so close, heck, yeah the install did free up some room, which is what I was after....)

  4. volare 77

    volare 77 Well-Known Member

    Messages:
    634
    Likes Received:
    60
    Joined:
    Jun 12, 2014
    Location:
    maryland
    I believe the drive link is different between the 3 and 2 speed motors on my 77 volare. I can check the part numbers tomorrow to know for sure..

  5. Dr Lebaron

    Dr Lebaron Well-Known Member

    Messages:
    2,630
    Likes Received:
    550
    Joined:
    Aug 17, 2011
    Location:
    Islamic State In Canada
    OK, lets start-
    He swapped the original 1980 wiper motor for a 1989 Caravelle/Diplomat due to the 89 hogging less space.

    This is where two parts book comes in handy.

    I happen to have a 89 left wiper pivot in my hand and it has a real old part number-3799479
    If they where using parts that old, I wouldn't think they changed much.

    Except why the different wiper motors?
    Supplier change?

  6. M_Body_Coupe

    M_Body_Coupe Well-Known Member

    Messages:
    127
    Likes Received:
    28
    Joined:
    Aug 19, 2013
    Location:
    Windsor, ON, Canada
    So...I pulled the wiper arms off in order to rule out option #3 (that being the easiest one). Bad news, meaning, the re-indexing won't take up the difference between the two types of wiper motors.

    My '81 parts book (section 23A-1400) shows:

    1) 3799101 - LINK w/BUSHING, Wiper Pivot Conecting
    2) 3799103 - Wiper Drive

    ...and I think Dr. Lebaron is talking about the actual pivot which is what mounts on the firewall/cowl sheetmetal and where the wiper arm itself attaches to. That part number is actually the same number my '81 parts book shows...so at least that rules out the possibility that the pivot arm itself is a different length, and that must mean the LINK itself is where the difference lies...at least for now that's the possible answer.

  7. Dr Lebaron

    Dr Lebaron Well-Known Member

    Messages:
    2,630
    Likes Received:
    550
    Joined:
    Aug 17, 2011
    Location:
    Islamic State In Canada
  8. Dr Lebaron

    Dr Lebaron Well-Known Member

    Messages:
    2,630
    Likes Received:
    550
    Joined:
    Aug 17, 2011
    Location:
    Islamic State In Canada
    That's exactly what I thought about the L/S pivot.
    All the same through the yrs.
    I just happen to have a pivot in my hand at the time.

    What was on those motors, came with those motor you got off me.

  9. Dr Lebaron

    Dr Lebaron Well-Known Member

    Messages:
    2,630
    Likes Received:
    550
    Joined:
    Aug 17, 2011
    Location:
    Islamic State In Canada
  10. M_Body_Coupe

    M_Body_Coupe Well-Known Member

    Messages:
    127
    Likes Received:
    28
    Joined:
    Aug 19, 2013
    Location:
    Windsor, ON, Canada
    Hey, nice link to Mopartsgiant, thanks!

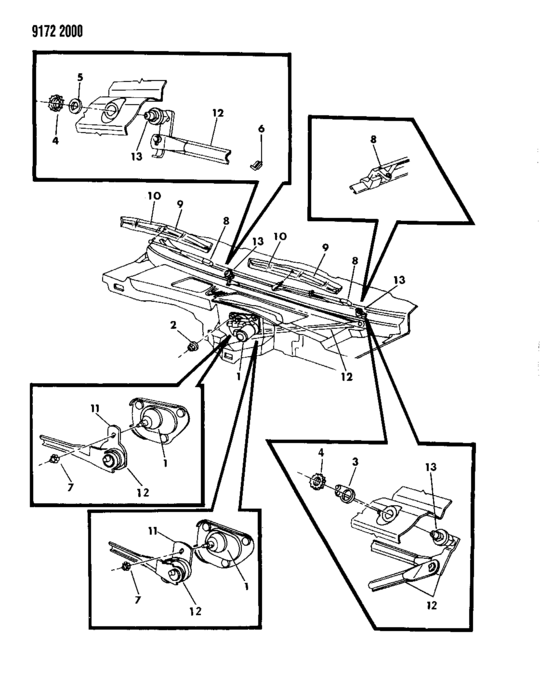

    OK, picture's worth a thousand words right? So I think what I actually need is a different #12 (in the diagram), that appears to be 4334106, and they even show it in stock at a reasonable $18.27, of course the shipping is going to sting!!!

    I'll snoop around for this part, in the meantime, do you think it's actually #13 that is different?

    My '81 books shows:

    1) 4026046 - PIVOT, Rt.
    2) 3799479 - PIVOT, Lt.

    So at least it would appear that the PIVOT should not be the issue since the numbers are the same between the two years anyways.

  11. volare 77

    volare 77 Well-Known Member

    Messages:
    634
    Likes Received:
    60
    Joined:
    Jun 12, 2014
    Location:
    maryland
    You will probably find out it hasn`t been updated and it is discontinued. Been there done that.

  12. BudW

    BudW Moderator Staff Member

    Messages:
    3,209
    Likes Received:
    876
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    I recommend people to swap out the entire assembly (not including wiper motor, but wiper motor crank to pivots) with the new(er) style M-body linkage – to prevent issues like this.

    I knew something was different – but couldn’t remember what.

    I “think” the only pieces that remain the same between all F and M-body’s is the passenger side pivot, the rod connecting the pivots and the small plastic bushings (either three or four bushings, depending on year car).
    It all will swap out as an assembly (from wiper motor shaft to pivots).
    BudW

  13. M_Body_Coupe

    M_Body_Coupe Well-Known Member

    Messages:
    127
    Likes Received:
    28
    Joined:
    Aug 19, 2013
    Location:
    Windsor, ON, Canada
    Alright...good news, I yanked the whole setup out...measured things out and drilled a new hole off-set to match the wiper motor offset. I put another bushing in, re-installed, gently re-tested, then went through several iterations of wiper delay, low speed and fast speed, all works good.

    So...in the end, ugly hack, well, non-OEM I suppose, but it works!

    Thanks for the input and suggestions everyone...

  14. Oldiron440

    Oldiron440 Well-Known Member

    Messages:
    1,065
    Likes Received:
    203
    Joined:
    Apr 25, 2017
    Location:
    Iowa
    How about a picture of what you did?

    Kermit likes this.
  15. M_Body_Coupe

    M_Body_Coupe Well-Known Member

    Messages:
    127
    Likes Received:
    28
    Joined:
    Aug 19, 2013
    Location:
    Windsor, ON, Canada
    Ahh..sorry about the delay!!!

    OK, here they are, a couple of BEFORE & AFTER pics:

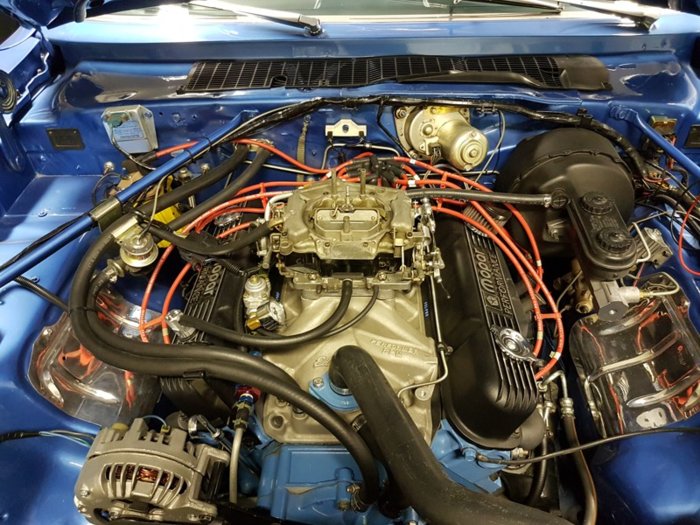

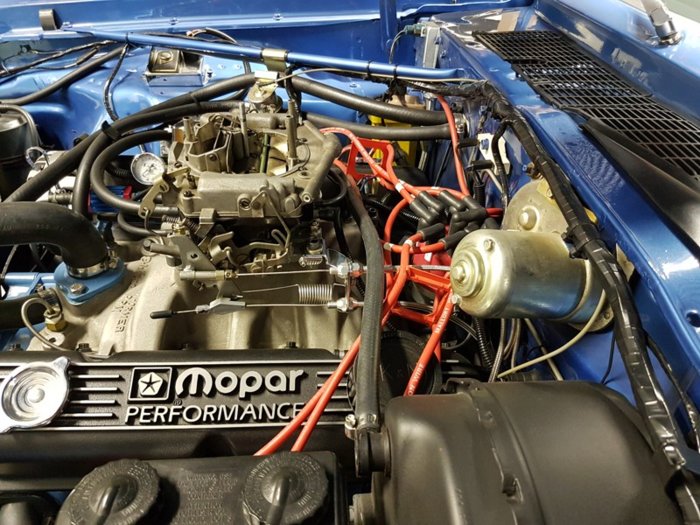

    BEFORE

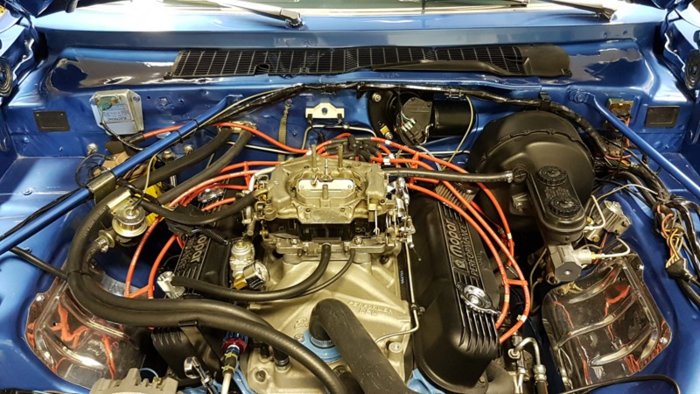

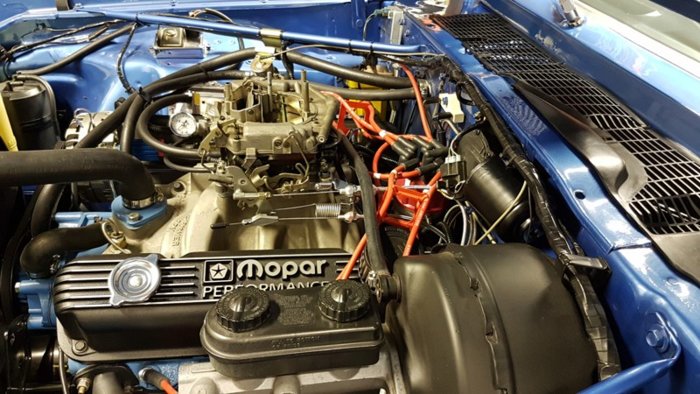

    AFTER



  16. Dr Lebaron

    Dr Lebaron Well-Known Member

    Messages:
    2,630
    Likes Received:
    550
    Joined:
    Aug 17, 2011
    Location:
    Islamic State In Canada
    The newer motor looks cleaner build wise and looks like more hand space around the distributor.

  17. slant6billy

    slant6billy Well-Known Member

    Messages:
    2,722
    Likes Received:
    512
    Joined:
    Dec 21, 2011
    I managed to get the grommets. The flat bar that connects the dr side wiper to the passenger side has a round hole witha notch at the 12 o clock top of the hole. I notice you have tp pus the grommet into the flat bar then press it onto the nub as in the pic above. The passenger side nub points up and the driver side points down, so press the gromment in on the bar opposite on either end

  18. BudW

    BudW Moderator Staff Member

    Messages:
    3,209
    Likes Received:
    876
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    M_Body_Coupe – you have a very clean engine compartment!

    The new wiper motor looks more camouflaged now (which is a good thing?).

    I agree.
    BudW

  19. M_Body_Coupe

    M_Body_Coupe Well-Known Member

    Messages:
    127
    Likes Received:
    28
    Joined:
    Aug 19, 2013
    Location:
    Windsor, ON, Canada
    What I was going after was more room, especially right around the distributor...so the new motor absolutely gets me there. Had I scored a NOS one of these at some point in time, heck, I would have been happy to use it as the goal really wasn't to try to hide any of the non-motor parts.

    Ahh..the clean engine bay is really a sad reflection of the fact that since the car became road-worthy I've put very few miles on it. Total of 6k KM over the last 7 yrs...never enough spare time to jam into the super-short cruising season we get around here.

  20. jasperjacko

    jasperjacko Well-Known Member

    Messages:
    1,360
    Likes Received:
    161
    Joined:
    Dec 4, 2011
    Yeah, My engine could use a good cleaning and repaint. Since I put it together, I've enjoyed about 22,000 miles on Modoba.
