Anyone making then or should I just fab up a pair?


76CinnamonRT

Well-Known Member
Joined
Feb 2, 2012
Messages
249
Reaction score
1
Location
Ripley, WV
Autorust ones fit great. I bought the whole kit, frame connectors and torque boxes and welded in mine. I wouldn't even fool with trying to make a set....

-Kenny


9secRR

Well-Known Member
Joined
Jan 14, 2012
Messages
814
Reaction score
494
Location
Saskatchewan, Canada
I made my frame connectors for $20. Square tubing is all you need. Very easy to do, as long as you can weld.


MiradaMegacab

Well-Known Member
Joined
Feb 27, 2011
Messages
1,847
Reaction score
753
Location
Long Island NY
2x3 rect tubing, dropped into the framerails from the top. Cut the floor boards tight to the frame connector and weld them together for the ultimate in structural integrety and stiffness.


9secRR

Well-Known Member
Joined
Jan 14, 2012
Messages
814
Reaction score
494
Location
Saskatchewan, Canada
No need to cut the floor. I notched the top of my tubing and welded tabs to the tubing. Then I welded it to the floor.

My car is on jacks stands, I can get pics if someone wants


80 Aspen RT

Well-Known Member
Joined
Mar 6, 2012
Messages
592
Reaction score
38
Location
Kansas
I bought the performance pack from Auto Rust also, I don't have them installed yet, but if you want pics to see what they look like I can do that tomorrow.


My imp

Well-Known Member
Joined
Oct 14, 2012
Messages
1,102
Reaction score
32
Location
Brunswick, Ohio
Yes please, if they are fit to the floor, it makes all the difference to me not having to lay on my Frakensteined back making templates. Thank you, Larry
I bought the performance pack from Auto Rust also, I don't have them installed yet, but if you want pics to see what they look like I can do that tomorrow.


76CinnamonRT

Well-Known Member
Joined
Feb 2, 2012
Messages
249
Reaction score
1
Location
Ripley, WV

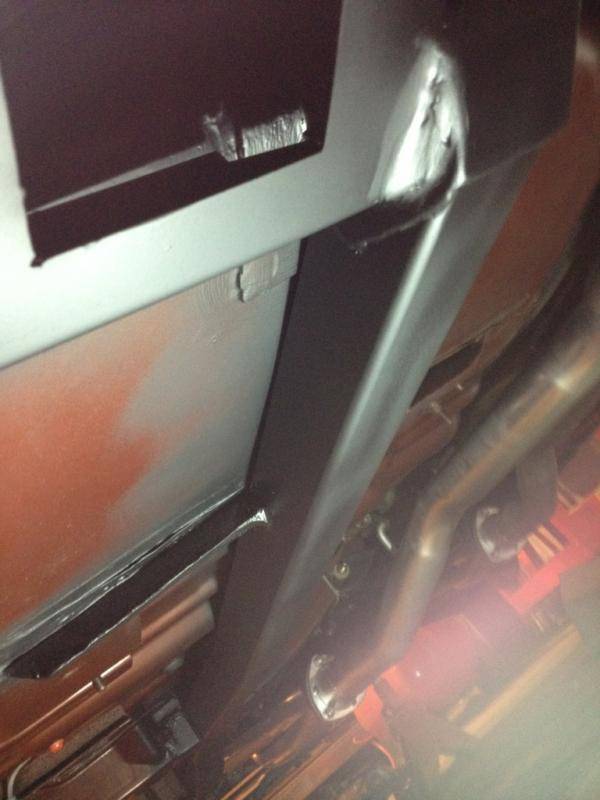

You might make the connectors but good luck making the torque boxes by hand. These are the only pics I have and they are poor quality. I haven't painted anything yet it is all in black primer.

NOOOO way I would cut my floor pans to make a straight connector fit. These have a slight bend so they stay under the car.

I also welded a piece of 1/4" plate to the bottom of my rails in the back of the car for Jack stand placement. I drilled a couple holes in em to match up with the drain holes in the frame rail. My rails were dented from jacks and jackstands in the past, that will never happen again lol










80 Lebaron Coupe

Well-Known Member
Joined
Jun 3, 2012
Messages
468
Reaction score
54
Location
East Texas
You might make the connectors but good luck making the torque boxes by hand. These are the only pics I have and they are poor quality. I haven't painted anything yet it is all in black primer.

NOOOO way I would cut my floor pans to make a straight connector fit. These have a slight bend so they stay under the car.

I also welded a piece of 1/4" plate to the bottom of my rails in the back of the car for Jack stand placement. I drilled a couple holes in em to match up with the drain holes in the frame rail. My rails were dented from jacks and jackstands in the past, that will never happen again lol

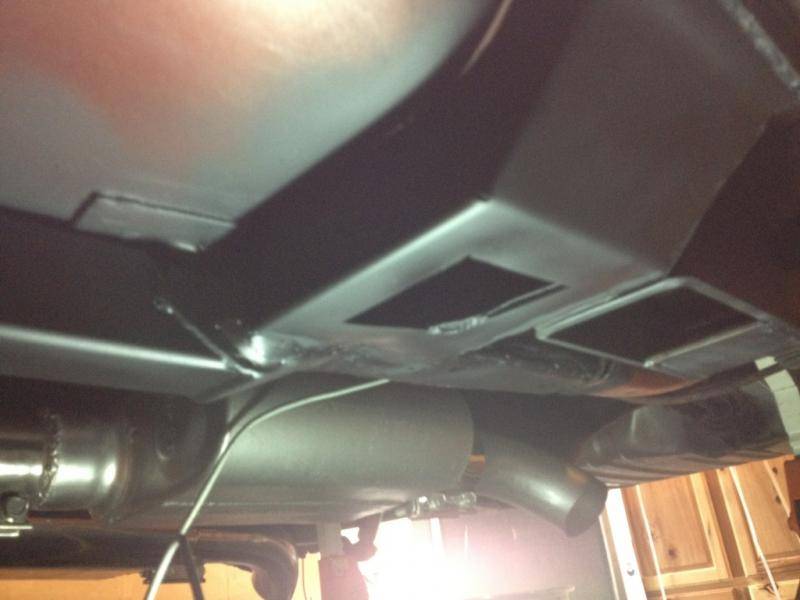

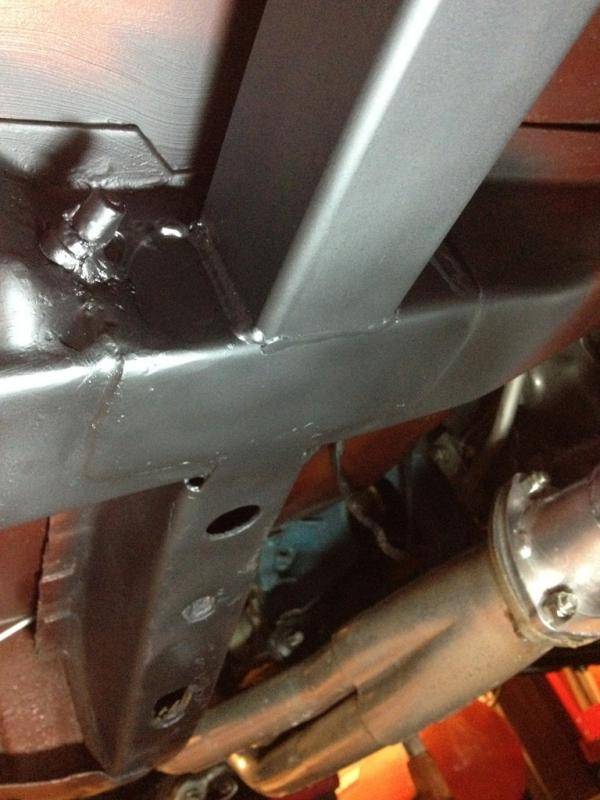

View attachment 3140
View attachment 3142
Nice Job! I don't want to cut my floor pans either. I will be going with the same performance Pack from ART.


80 Aspen RT

Well-Known Member
Joined
Mar 6, 2012
Messages
592
Reaction score
38
Location
Kansas

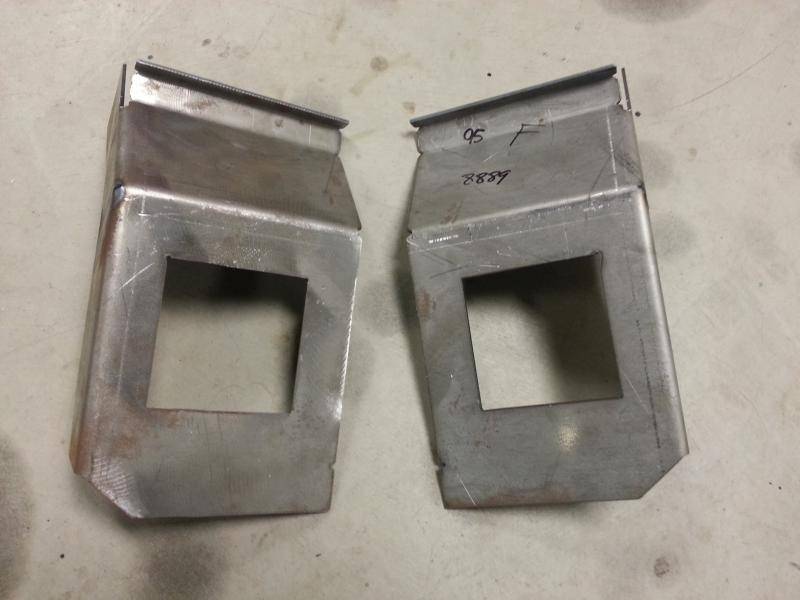

Ok, sorry it took so long. Here is what you get for the Performance Package...and about $900

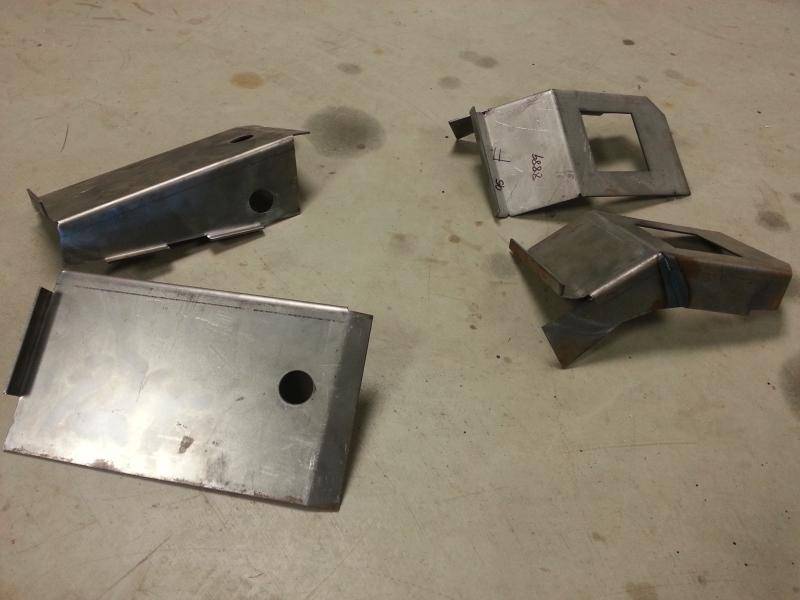

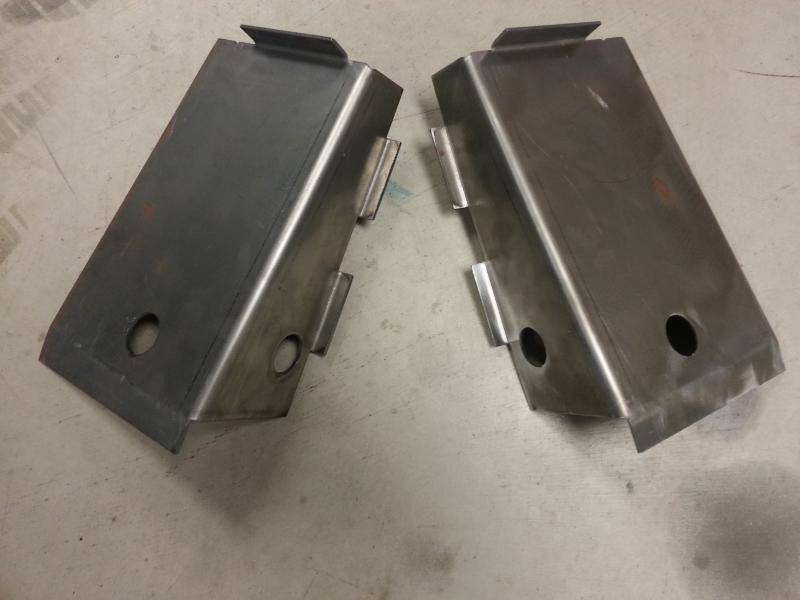

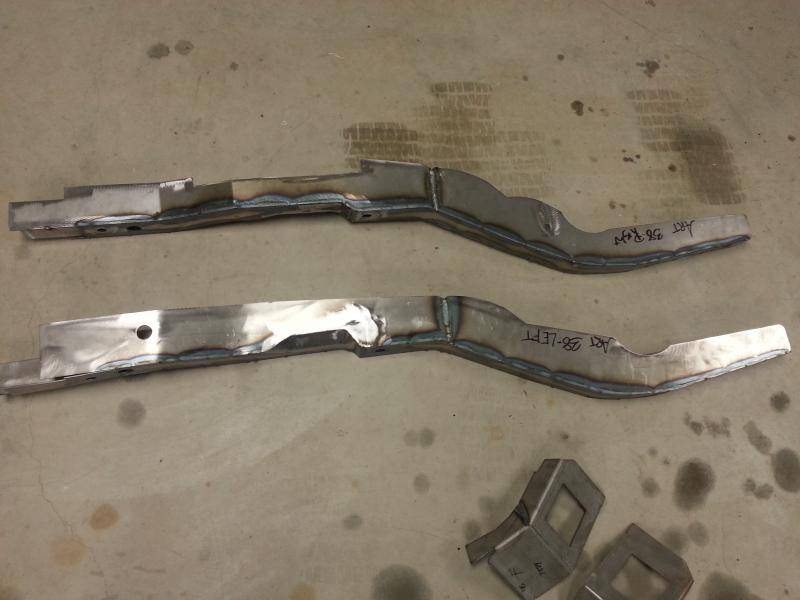

Front Torque Boxes Rear Torque Boxes

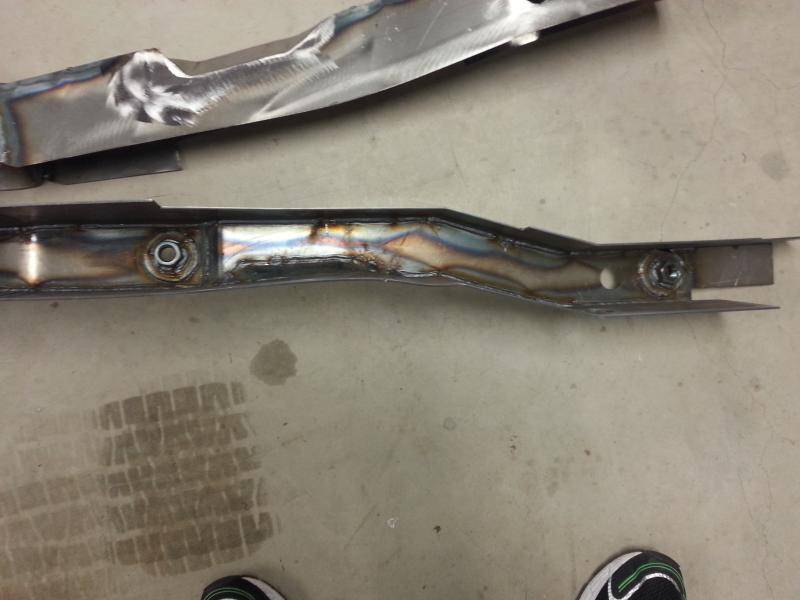

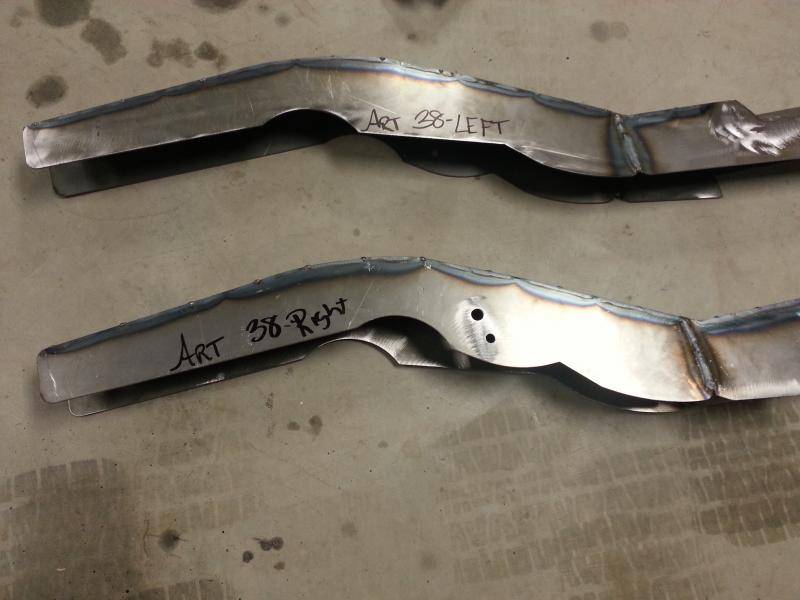

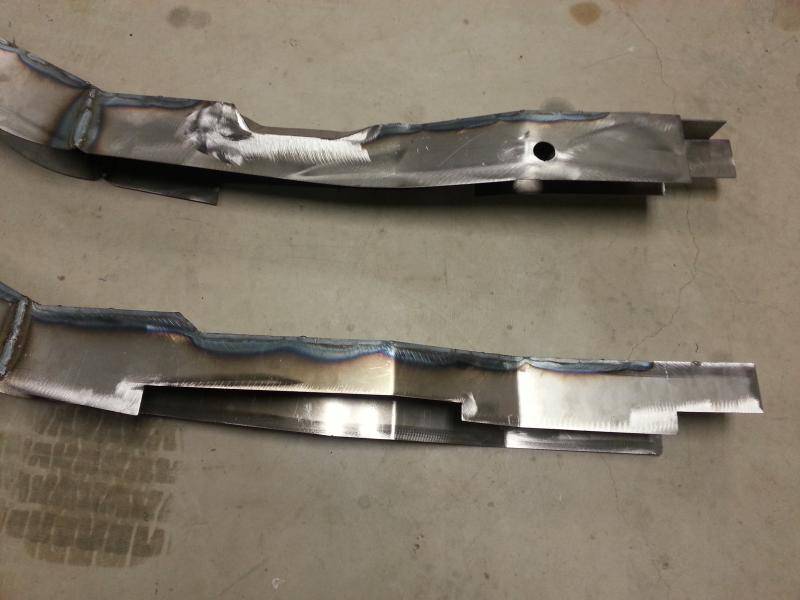

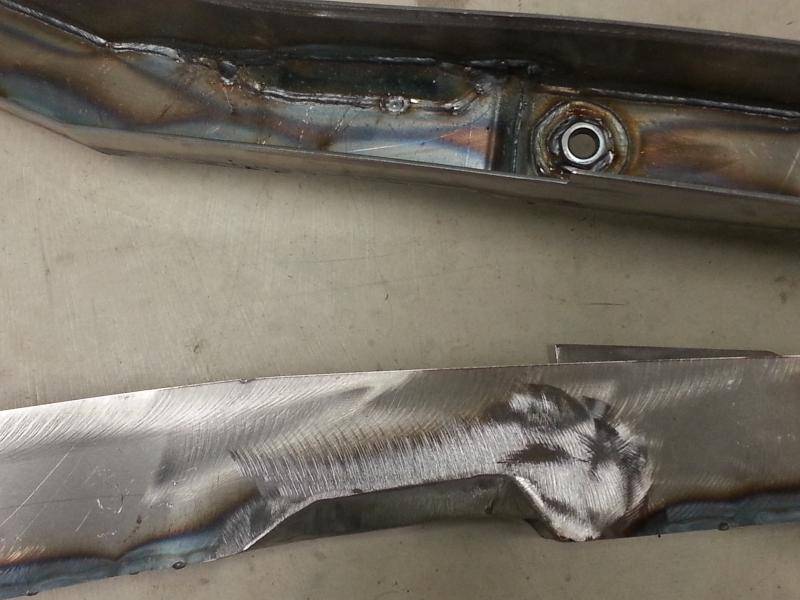

The Full front subframe cap. Notice the K member nuts welded in .

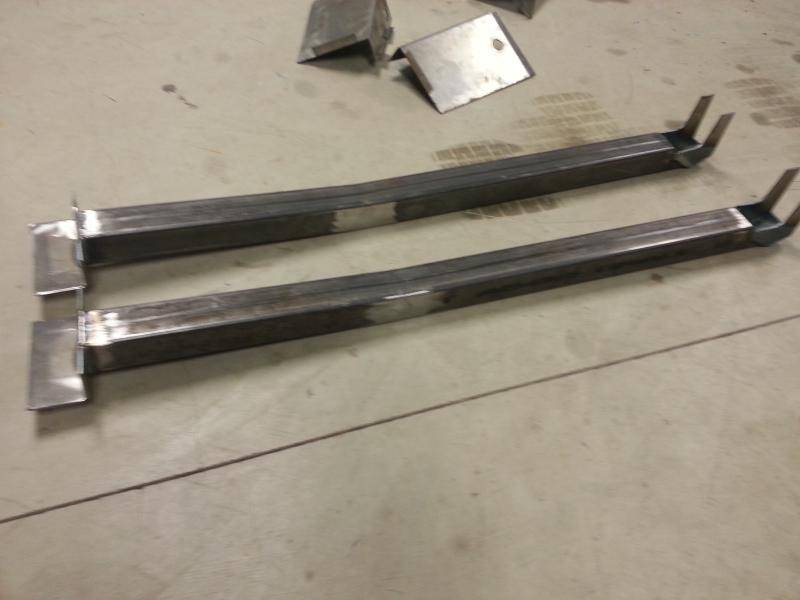

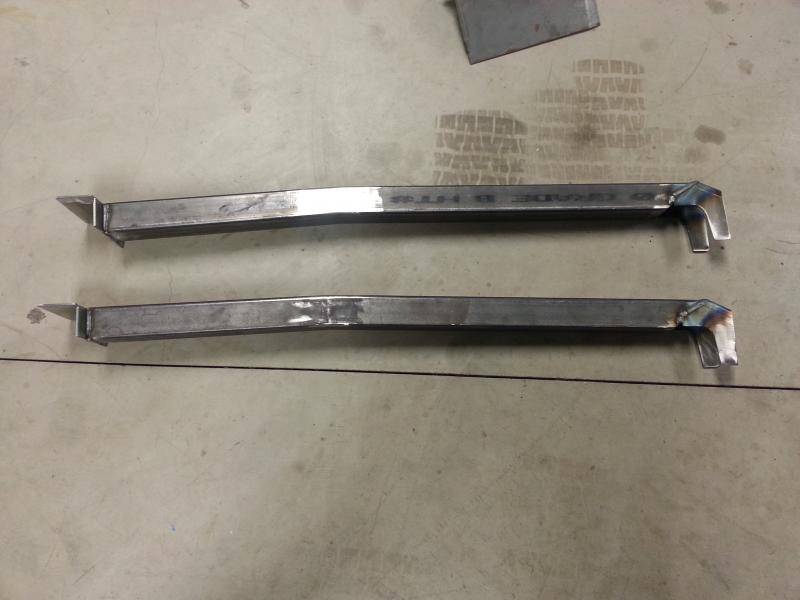

Sub Frame Connectors
