Rear Brake Line Routing

Chassis, Suspension and wheels

  1. Duke5A

    Duke5A Well-Known Member

    Messages:
    405
    Likes Received:
    118
    Joined:
    Apr 6, 2018
    Location:
    Michigan
    Anyone have a diagram outlining the factory brake line routing? I'm plumbing the discs on the Dana and I'm trying to figure out where the lines are supposed to go. I modified them 15 years ago when I swapped the 8.75" in to get the brake tee on the axle to reach. Can't figure out how to put it back now. lol. Thanks.

  2. Aspen500

    Aspen500 Well-Known Member

    Messages:
    3,906
    Likes Received:
    1102
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    Are you talking the line from the master to the rear hose, or the lines actually on the rear axle?

  3. XfbodyX

    XfbodyX Well-Known Member

    Messages:
    451
    Likes Received:
    88
    Joined:
    Sep 9, 2015
    This maybe?

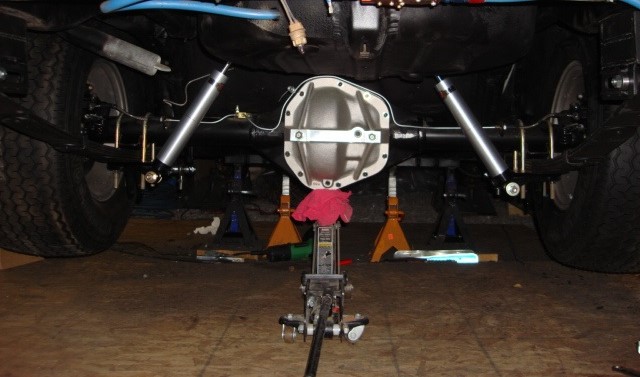

    Hard lines till just before the inner u bolt then braided to the disc caliper.

    View attachment 34386


  4. Duke5A

    Duke5A Well-Known Member

    Messages:
    405
    Likes Received:
    118
    Joined:
    Apr 6, 2018
    Location:
    Michigan
    Sorry guys, should have been clearer in my first post. I'm looking for a picture of how the steel line runs along the frame rail in the back and terminates to that bracket. This is where the rear axle T goes connects to the steel line.

    When I swapped the 8.75" many moons ago the vent tube on the housing was farther in toward the carrier than it was on the 7.25". Because of this the brake T wouldn't reach, so I got creative bending the factory steel line around to reach. The new brake T that I have has a pretty long line attached to it and will reach the factory location where the bracket is supposed to go. Just unsure of how to correctly reroute the steel line.

    I did a lot of stupid crap on this car when I was a kid. Slowly I'm trying to make it right.

  5. Oldiron440

    Oldiron440 Well-Known Member

    Messages:
    1,925
    Likes Received:
    356
    Joined:
    Apr 25, 2017
    Location:
    Iowa
    The Dana looks NICE.!

  6. XfbodyX

    XfbodyX Well-Known Member

    Messages:
    451
    Likes Received:
    88
    Joined:
    Sep 9, 2015
    I cant speak for sure on your type car then, oem on a F runs down the side right under the rocker lip.

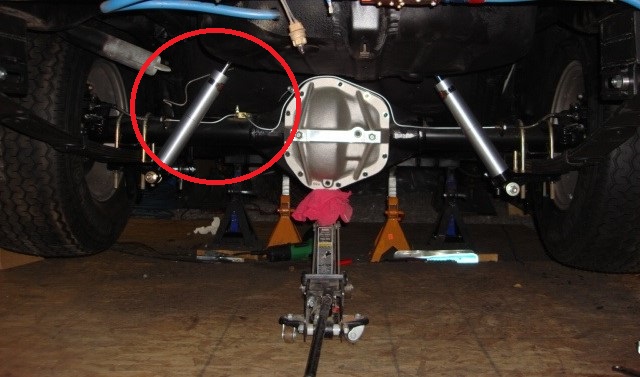

    You can see in my pic that it comes up from the rocker area and snakes around the rear unibody then to the hard mount bracket that the rubber line connects to.

    Id bet if you start to look you will see the small holes where the line clamps held your org. line.



    Last edited: Apr 14, 2019
  7. BudW

    BudW Moderator Staff Member

    Messages:
    3,592
    Likes Received:
    954
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

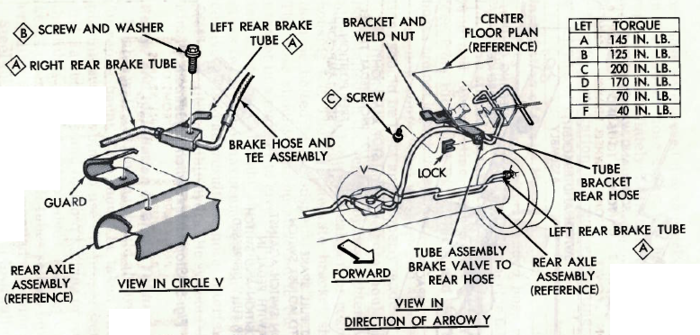

    I don’t have access to any vehicles to get good pictures – so I took pictures of my parts and FSM for you, so hopefully this helps.

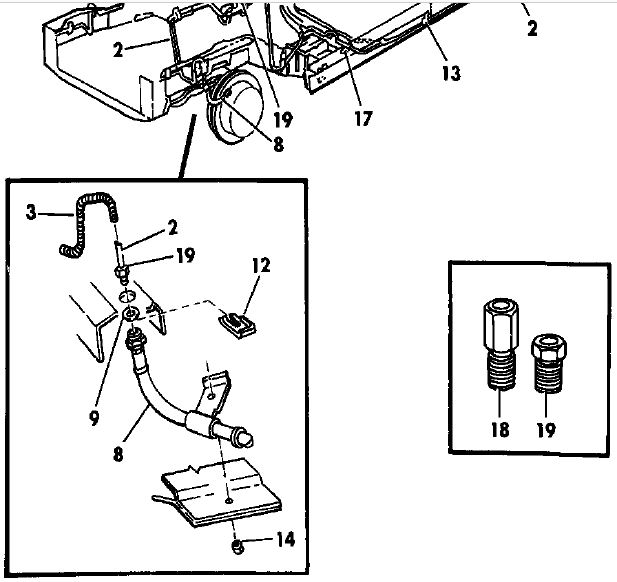

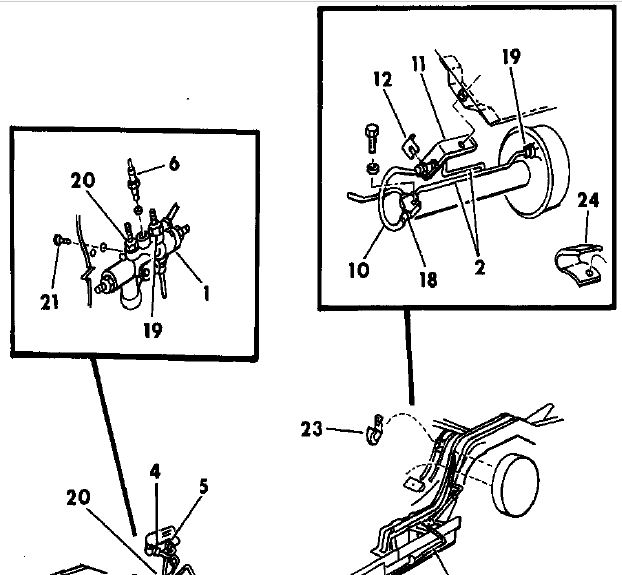

    ’84 Parts Manual
    84 PM pg 5-75 a.JPG
    84 PM pg 5-75 b.JPG

    ’86 FSM (full page is at bottom of page)
    86 FSM pg 5-6 b.png
    BudW


    Attached Files:

  8. Aspen500

    Aspen500 Well-Known Member

    Messages:
    3,906
    Likes Received:
    1102
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI

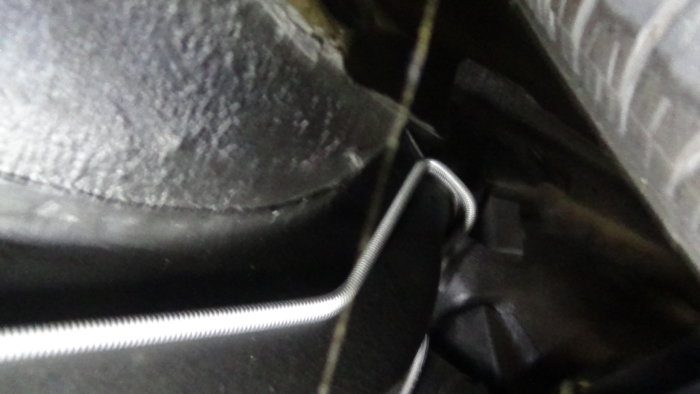

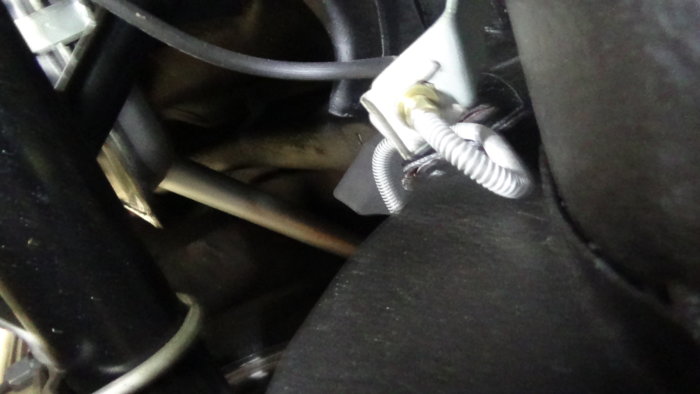

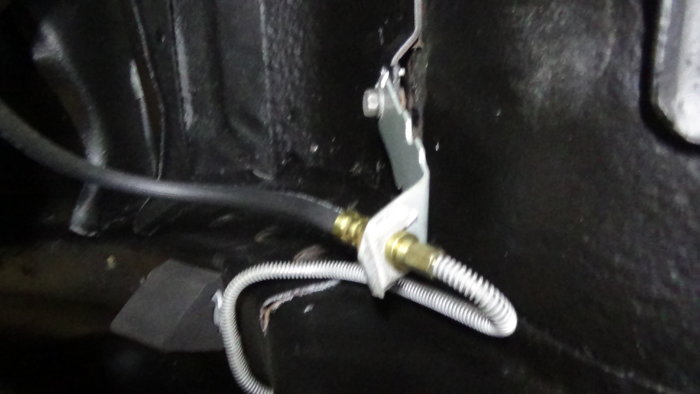

    Is this kind of what you are looking for? I know, not the greatest photo's but the best I can get sliding under the car without putting it on stands. Keep in mind, this is a '79 Aspen, not an '87 5th so it may or may not be the same.

    Don't feel too bad about the dumb things you did to the car in the past. Right there with you on what i did to mine in the early '90's by going semi pro-street with it. Spent 2002-2012 undoing all of it while kicking myself every step of the way.:confused:
    DSC00265.JPG DSC00267.JPG DSC00268.JPG

  9. F body Deconstructor Jim

    F body Deconstructor Jim Well-Known Member

    Messages:
    477
    Likes Received:
    120
    Joined:
    Jun 19, 2011
    Location:
    Phoenix, AZ

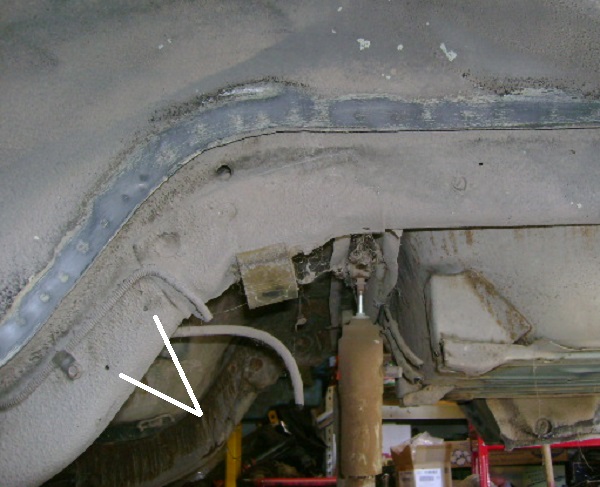

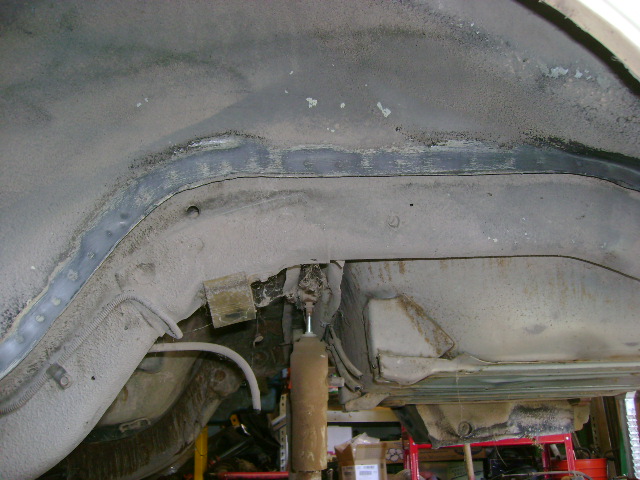

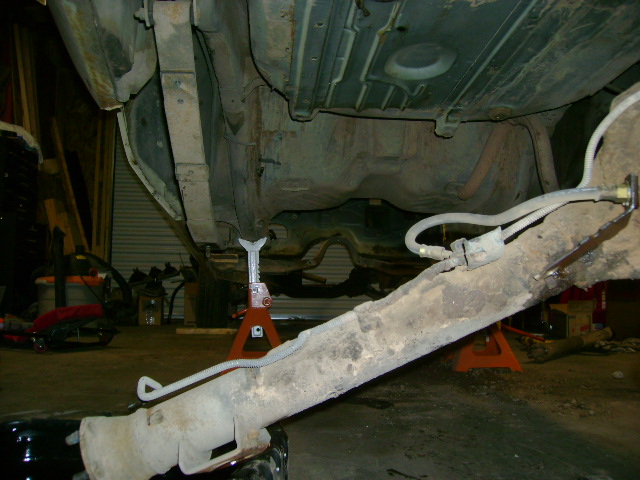

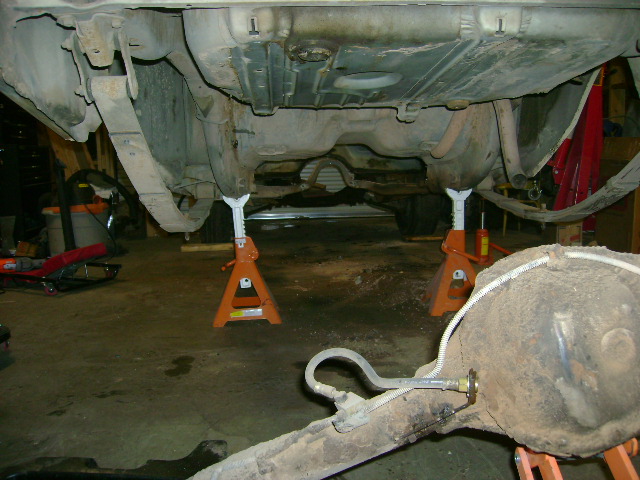

    line wraps around frame just forward of rubber snubber

    DSC01002.JPG DSC01003.JPG

    Last edited: Apr 15, 2019
  10. F body Deconstructor Jim

    F body Deconstructor Jim Well-Known Member

    Messages:
    477
    Likes Received:
    120
    Joined:
    Jun 19, 2011
    Location:
    Phoenix, AZ

  11. Duke5A

    Duke5A Well-Known Member

    Messages:
    405
    Likes Received:
    118
    Joined:
    Apr 6, 2018
    Location:
    Michigan

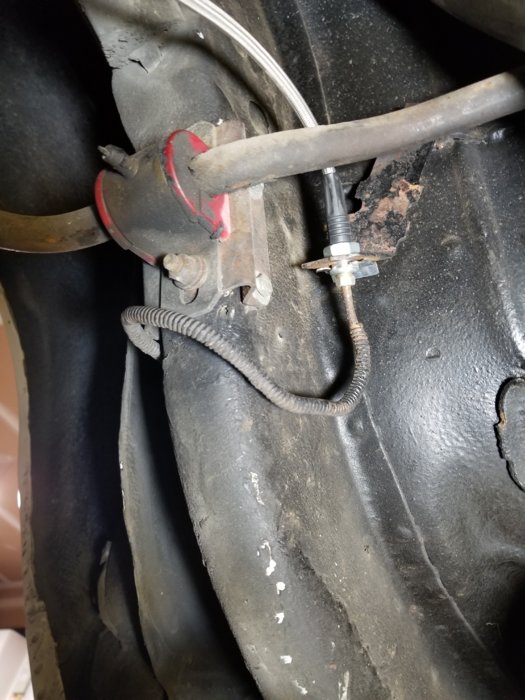

    That was it, thanks guys! I had relocated that bracket and wasn't sure of the proper orientation. Rear brakes are plumbed. Need to swap the proportion valve out now. Hope the line break free.


    Last edited: Apr 16, 2019
  12. BudW

    BudW Moderator Staff Member

    Messages:
    3,592
    Likes Received:
    954
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    You relocated your rear sway bar brackets?
    Do you remember why?

    This picture that F Body Deconstructor Jim provided shows the pre-punched holes for the rear sway bar. Just line up the bracket and use the self-taping screws that come with it and you’re in business.
    These holes are on most (if not all) of the FMJ’s I’ve looked at.
    BudW

  13. Duke5A

    Duke5A Well-Known Member

    Messages:
    405
    Likes Received:
    118
    Joined:
    Apr 6, 2018
    Location:
    Michigan
    That is the factory location for the sway bar bracket. I took that photo on a real a screw ball angle. I did use the factory holes, but I drilled them out and used bolts that go all the way through the frame rail.
