    I ended up accidentally breaking (I think it's broken anyway) my multi-function switch and need to fix it.

    I got the wheel pulled no problem. Now I'm assuming I need another tool to pull this lock plate.

    Then, on rock auto, they have two options for "turn signal switches" for 1980 Córdoba's with tilt column; WITH cornering lights, and WITHOUT cornering lights... what the heck is a "cornering light"??

    Any other "special tools" I'll need after I get the lock plate off?


  2. Aspen500

    Aspen500 Well-Known Member

    Messages:
    3,149
    Likes Received:
    905
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    Cornering lights are a white light on the side of the front fenders that come on with the signal to shine around the corner. I don't see them on the pic of your car.

    You do need a tool for the lock plate. Can be had relatively cheap at most any auto parts store.

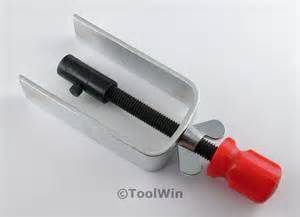

    Looks like this or a variation of it. The center threads on the steering shaft and the wing nut is tightened, which pushes the lock plate down against the spring so you can get the snap ring off.
    My useless DSL won't load your video...................
    lock.jpe

    Intrepolicious likes this.
  3. Intrepolicious

    Intrepolicious Well-Known Member

    Messages:
    206
    Likes Received:
    16
    Joined:
    Feb 16, 2017
    Location:
    Florida
    Ah ok, thanks. Yeah, my car doesn't have the cornering lights then.

    So, after I get the lock plate off, are there any special tools (or tips) I'll need to fix this? The video just shows the multi function switch flopping around loosely in the steering column.

  4. Intrepolicious

    Intrepolicious Well-Known Member

    Messages:
    206
    Likes Received:
    16
    Joined:
    Feb 16, 2017
    Location:
    Florida
    I can't find any info on disassembly of this multi-function switch at all in the 1980 FSM. Only the wiring diagram.

  5. Intrepolicious

    Intrepolicious Well-Known Member

    Messages:
    206
    Likes Received:
    16
    Joined:
    Feb 16, 2017
    Location:
    Florida
    Well, I got the lock plate tool. Removed the wheel and the lock plate... then discovered that the switch is actually fine, but the multi-function control arm is broken at a few places inside the column. Not good!

    I think it's safe to assume this is going to be an extremely hard part to find.

  6. 80mirada

    80mirada Well-Known Member

    Messages:
    804
    Likes Received:
    217
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    They used the same basic assembly in a number of vehicles. I think there are a couple of different wiring connectors, but the stalks are relly the same

    Intrepolicious likes this.
  7. DCAspen

    DCAspen Well-Known Member

    Messages:
    820
    Likes Received:
    142
    Joined:
    Sep 27, 2011
    Location:
    ct.
    Is your plastic stalk broken?I have a few used ones stashed away .2 screws hold that in.I have a NOS switch in my stash also,I'll look in my 1980 parts book for the part #

    Intrepolicious likes this.
  8. Intrepolicious

    Intrepolicious Well-Known Member

    Messages:
    206
    Likes Received:
    16
    Joined:
    Feb 16, 2017
    Location:
    Florida
    Yes, where the arm connects inside the column. It looks broken in a few places. I thought I needed the turn signal switch, but no.

    It'd be great if you have one of these!

    edit: I'll happily pay good money for the parts to fix this. Please let me know what you've got...

    Last edited: May 3, 2017
  9. Intrepolicious

    Intrepolicious Well-Known Member

    Messages:
    206
    Likes Received:
    16
    Joined:
    Feb 16, 2017
    Location:
    Florida

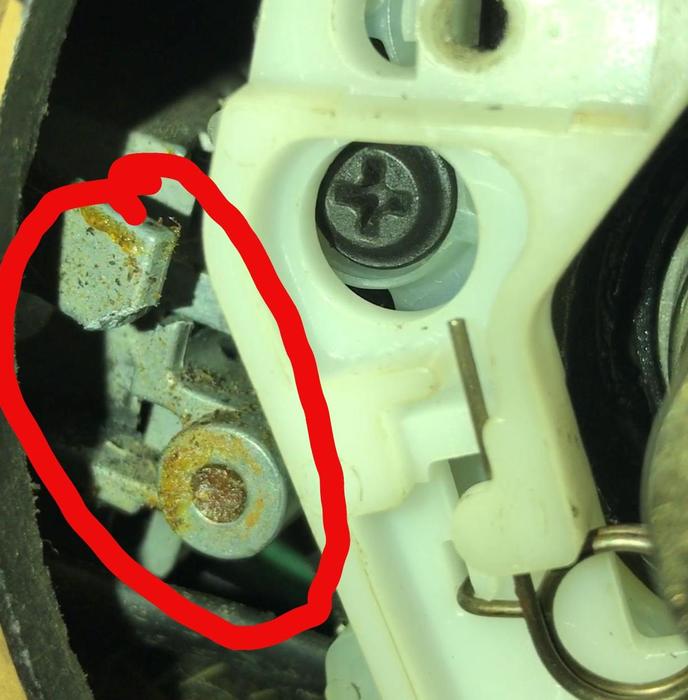

    Here you can see where the arm is broken where it connects (left side of pic)

    Last edited: May 3, 2017
  10. BudW

    BudW Moderator Staff Member

    Messages:
    3,161
    Likes Received:
    864
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Do you have cruise control?
    The plastic stalk is different if you do (or don’t) have.

    That plastic stalk (doesn’t matter if you have cruise or not) is relatively easy to break if you are not paying attention, with a shirt sleeve or coat pocket.

    Ones with cruise control are a bit harder to find and bit harder to replace (have to feed wire in and out).


    - Without cruise: Pull the end cap off, get a small screwdriver and pull the felt to outside of the column, then remove both screws. I do recommend getting a magnetic tip screwdriver, for if you drop a screw, its more work to fish it out.
    Once unscrewed, pull the old stalk out and reverse procedures to install.

    - With cruise, the procedures are almost the same - BUT DO NOT just pull the old wire out, until you have a replacement part, first!
    Let us know, so we can give instructions on how to replace that (once parts are obtained).

    I don't have an '80 or '81 parts manual to give out part numbers.
    I suspect (but not confirmed) that all Chrysler vehicles, except for Omni/Horizon, from '80 to '87 (or so) are the same, tilt or not - with exception with or without cruise.

    Pretty much all of the stalks I have found at my local pull -a-part have ALL been broken, in the last few years (cruise or not).
    I "think" I have one good stalk, but am planning on using it when I convert my '77 wagon to tilt steering (with a '84 tilt column).
    BudW

    Intrepolicious likes this.
  11. Intrepolicious

    Intrepolicious Well-Known Member

    Messages:
    206
    Likes Received:
    16
    Joined:
    Feb 16, 2017
    Location:
    Florida
    Thanks Bud. Wondering if all these broken parts can be glued back together.. I don't see finding this part unless I can talk someone out of one.

  12. BudW

    BudW Moderator Staff Member

    Messages:
    3,161
    Likes Received:
    864
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    I think the important question is if you have cruise control, or not.

    If you do not have cruise, the cover or sleeve you are looking for is 4293911, which was superseded to 4221460 (official part name is W/S WIPE & WASH COVER), which was recently discontinued. MSRP is $12.05 (US) as of today – and might still be available from your dealership, possibly.

    I couldn’t see your video – so not sure if you have cruise, or not.

    You mentioned glue. It might be something to try. Also, there might be room inside of the sleeve for a thin wall metal tube – possibly.
    BudW

  13. rcmaniac791

    rcmaniac791 Well-Known Member

    Messages:
    197
    Likes Received:
    62
    Joined:
    Nov 4, 2015
    @BudW I think I was able to make out from the video that there is indeed cruise.

  14. BudW

    BudW Moderator Staff Member

    Messages:
    3,161
    Likes Received:
    864
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    I'm unable to view the video.

  15. DCAspen

    DCAspen Well-Known Member

    Messages:
    820
    Likes Received:
    142
    Joined:
    Sep 27, 2011
    Location:
    ct.
    1980 parts book shows 3747561 part # for XJS w/tilt + cruise,you need to reuse the thin metal stalk,there is a couple NOS ones on ebay,put Mopar 3747561 as a search,cheapest one was 25.00.Hope this helps

    Intrepolicious likes this.
  16. BudW

    BudW Moderator Staff Member

    Messages:
    3,161
    Likes Received:
    864
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    I'm not able to view his video, but is he needing the turn signal switch, the arm, or the cruise switch?

    Intrepolicious likes this.
  17. Intrepolicious

    Intrepolicious Well-Known Member

    Messages:
    206
    Likes Received:
    16
    Joined:
    Feb 16, 2017
    Location:
    Florida
    Thanks guys! Yes I have cruise control, and my stalk is broken where it attaches inside the steering column. (Where the multi-hinge type assembly is. The picture I posted shows where the break is (circled in red)

  18. Intrepolicious

    Intrepolicious Well-Known Member

    Messages:
    206
    Likes Received:
    16
    Joined:
    Feb 16, 2017
    Location:
    Florida
    That, my good sir, is a big help!

  19. Intrepolicious

    Intrepolicious Well-Known Member

    Messages:
    206
    Likes Received:
    16
    Joined:
    Feb 16, 2017
    Location:
    Florida
    Ok I ordered that $25 NOS one from Ebay.

  20. Intrepolicious

    Intrepolicious Well-Known Member

    Messages:
    206
    Likes Received:
    16
    Joined:
    Feb 16, 2017
    Location:
    Florida
    Ok, yes... I have cruise.. so when the part (3747561) gets here, I'll be looking for those instructions if you don't mind. Thanks in advance guys!
